These low profile LED pucks lights feature traditional hub system power input for recessed or surface mount applications. Available in three finishes, as single pucks or three puck kits, they can be controlled with the single color Trulux control system (no minimum load requirements) or using most TRIAC, CL or incandescent dimmers with ELV driver or PS-12-12VPI-T driver within minimum and maximum load requirements.
Durable low voltage steel puck lights in three finishes emit 2700K Warm White LED light with 90 CRI.
DESIGN FEATURES
- Warm white LEDs (2700k) use only 3.2 watts
- Available individually and three-pack kits
- Dimmable with most CFL and low voltage electronic dimmers (10%-100% light control)
- Individual Omni pucks include 78" lead wire and mounting hardware.
- Zinc alloy LED housing with aluminum heat sink
- Kits are designed for plug-in installations, controlled by rocker switch on power cord; hardwired installations are controlled by wall switch or dimmer

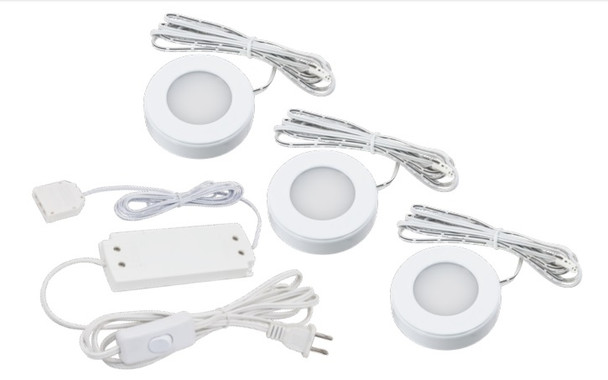

- Kits include: (1) 12V Plug-in LED power supply with 3-port hub, (3) Omni pucks each with 78" lead and mounting hardware
MOUNTING
Surface or recess mount (2-1/4” cut-out); mounting screws included
APPLICATIONS
Display shelves, under-cabinets
RESOURCES AND DOWNLOADS
OMNI LED Puck Light Spec SheetOMNI LED Puck Light Cut SheetInstallation Instructions
| SKU | AL-OMNI-3KIT |
|---|---|
| Weight | 4.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Color Rendering Index (CRI) | 90+ |
| Driver Type | 12V DC |
| Lumen Output | 140-150 lm |
| L70 Expected Life (hours) | 30,000 hrs |
| Total Input Watts | 3.2 |
