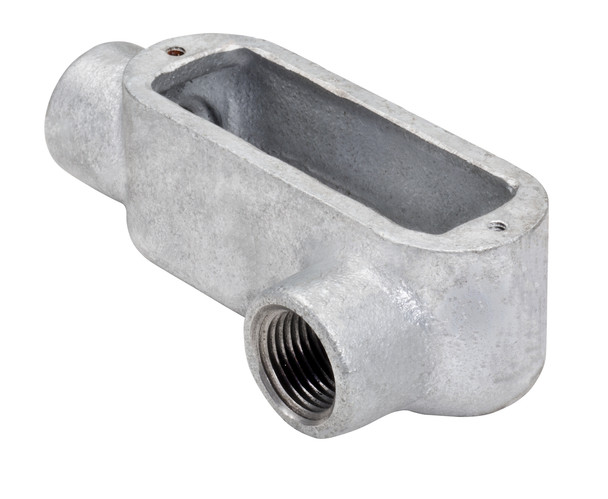

The Garvin Industries LL4M is a robust 1-1/4" threaded LL type conduit body crafted from durable malleable iron. Engineered for reliability, this conduit body is zinc plated and aluminum enameled for enhanced corrosion resistance, making it ideal for demanding environments. Designed to provide easy access to conductors, it simplifies maintenance and future system modifications.

Key Features and Benefits

• Constructed from high-strength malleable iron for long-lasting durability
• Zinc plated and aluminum enameled finish resists corrosion
• NPT tapered hubs ensure a secure fit
• Suitable for use in concrete installations
• UL 514A and NEMA FB 1 certified for safety and quality
• Provides convenient access for conductor maintenance and upgrades

Specifications

• Size: 1-1/4"
• Material: Malleable iron
• Finish: Zinc plated, aluminum enameled
• Internal volume: 32.3 in³
• Max. number of conductors: 3
• Max. conductor size: 2 AWG
• Certifications: UL 514A, Fed. Spec W-C-586D, NEMA FB 1
• Dimensions: 8.22" (A) x 2.50" (B) x 3.40" (C)

Common Uses

Ideal for commercial, industrial, and residential electrical installations where access to conductors is needed for maintenance or system changes, especially in concrete or harsh environments.
