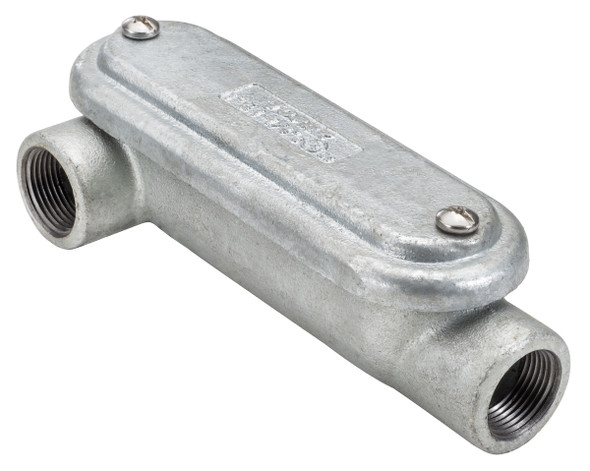

The Garvin Industries MLR6CGHDG is a robust LR type mogul conduit body designed for demanding electrical installations. Crafted from hot dip galvanized malleable iron, this 2-inch conduit body comes complete with a cover and gasket, ensuring reliable performance in wet locations. Its large internal volume and smooth hub bushings make it ideal for accommodating large conductors and facilitating easy wiring access.

Key Features and Benefits

• Rugged malleable iron construction for long-lasting durability
• Hot dip galvanized finish for superior corrosion resistance
• Includes raised cover, neoprene gasket, and stainless steel screws for a tight seal
• Threaded NPT tapered hubs fit rigid and IMC conduit
• Large opening simplifies pulling, splicing, and tapping large conductors
• cULus listed for wet locations and meets multiple industry standards

Specifications

• Size: 2"
• Max. Number of Conductors: 3
• Max. Conductor Size: 4/0 AWG
• Internal Volume: 75 in³
• Material: Hot dip galvanized malleable iron
• Certifications: UL 514A, UL 514D, NEMA 3R

Common Uses

Perfect for commercial and industrial wiring projects where large conductors are used, especially in wet or outdoor environments. Ideal for making straight or 90° turns, taps, and splices in conduit runs.
