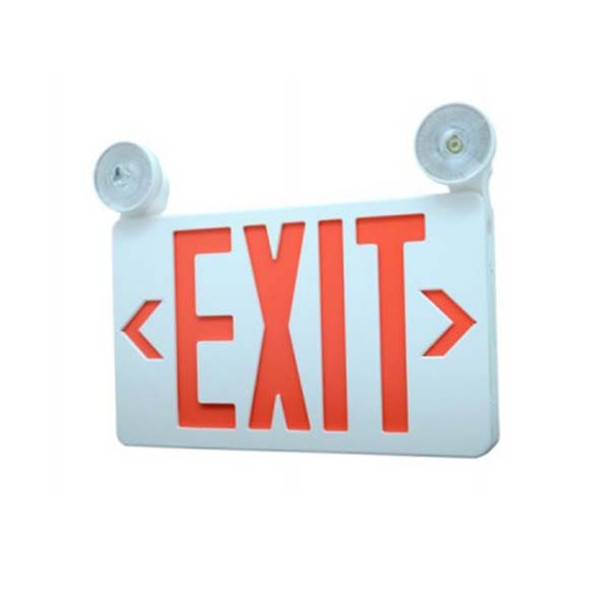

The RXEL39 Series LED Emergency Exit Sign offers adjustable heads, single or double faceplates with snap-in and out chevrons, LED bulbs, and backup battery. Ideal for quick-installation exit signs with low energy consumption. Remote head capable.
The RXEL39 Series LED Emergency Exit Sign features two adjustable heads, single or double face high impact thermoplastic faceplates with snap-in & out chevrons. This exit sign uses LED light bulbs and has a backup battery. Ideal for applications requiring attractive, quick-installation exit signs and low energy consumption. Remote head capable.
DESIGN FEATURES
CONSTRUCTION
- Includes single or double face high impact thermoplastic faceplate. Universal snap-in & out chevrons meets all state and local UL924 codes. Also has one blank face
- Thermoplastic housing w/ flame retardant housing
- Compact, low profile design
ELECTRICAL
- 120/277V AC input, 60Hz
- Operating temperature 50º F to 104ºF
- Battery: NI-cd Battery, 2pcs of 3.6V 1.5Ah for high lumen output
- 3.6V 2W remote capability (RH21) and 3.6V 4W (RH22) remote capabilities are available | for wet location 2.7~7.3V 1W (RH17) or 2.7~7.3V 2x1W (RH18)
- Light source: SMD 2x2W LED, 6000K, 250lms
- 90 minutes of illumination in case of power failure
- Manual test switch and LED indicator
- Estimated 25 year LED lamp life.
INSTALLATION
- Universal mounting (wall, side and ceiling)
- Easy, one-person installation

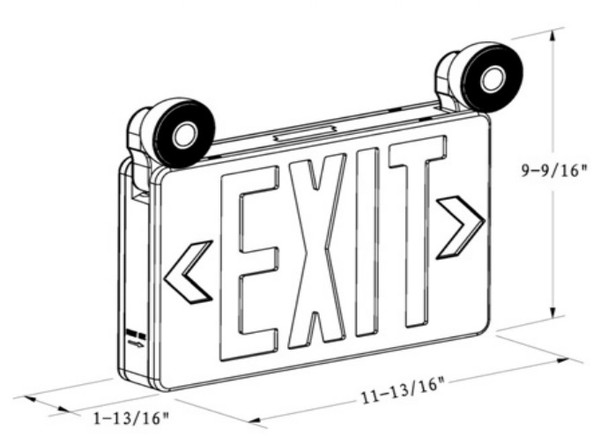

DIMENSIONS (W x D x H)
11-3/4” x 1-7/8” x 9-1/2”
FINISH
- RW= Red with white housing
- GW= Green with white housing
CERTIFICATIONS
- UL listed for damp location
- 5 year limited warranty
RESOURCES AND DOWNLOADS
| SKU | RP-RXEL39 |
|---|---|
| Weight | 8.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Driver Type | 120/277V |
| Lumen Output | 250 |
| Color Temperature (CCT) | 6000K |
| Total Input Watts | 4 |
