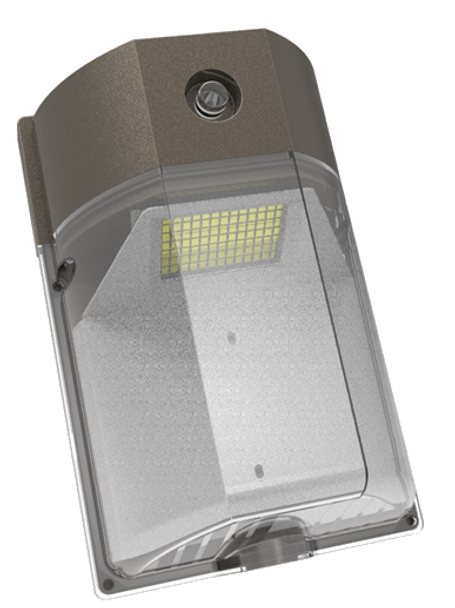

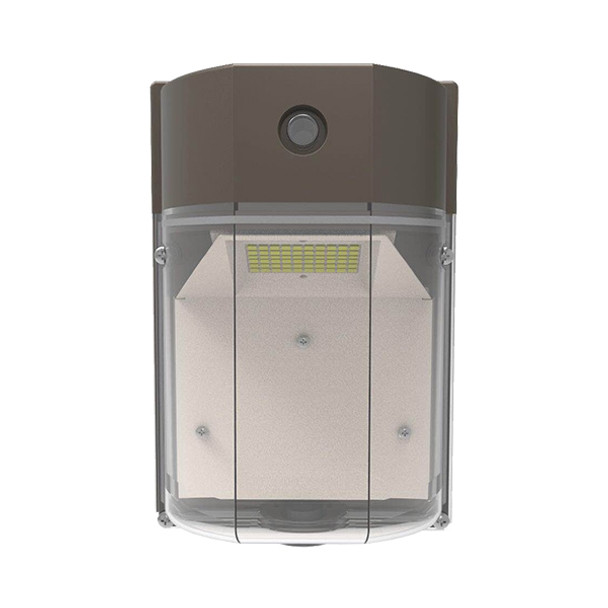

Mini LED wallpack with built-in photocell, 15 or 25 watts, 1,755 or 3,375 lumens, up to 50,000 hours lifespan, available in 4000K or 5000K color temperature (CCT), 5 years limited warranty.
Integral secondary heat sink to optimize thermal transfer and maximize the performance of the LED chips.
FEATURES
- Philips Lumileds 3030 LED chips
- Certified to ANSI C136.31-2001, 3G vibration standards
- Precision molded proprietary acrylic lenses provides multiple photometric
- Aluminum heat sink
- UV Stabilized
- Polyester antistatic powder-coated finish
- Rust and corrosion proof
- Stabilized to prevent cracking or peeling
PRODUCT DIMENSION
8.86” X 6.10” X 2.76”
RESOURCES AND DOWNLOADS
LED Mini Wallpack 15W Spec SheetLED Mini Wallpack 25W Spec SheetInstallation Instructions
| SKU | LOD-MWP |
|---|---|
| Weight | 4.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Color Rendering Index (CRI) | 80 or 85 |
| Driver Type | AC110-277V |
| Lumen Output | 1,755 or 3,375 |
| L70 Expected Life (hours) | 50,000 hrs |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 15 |
