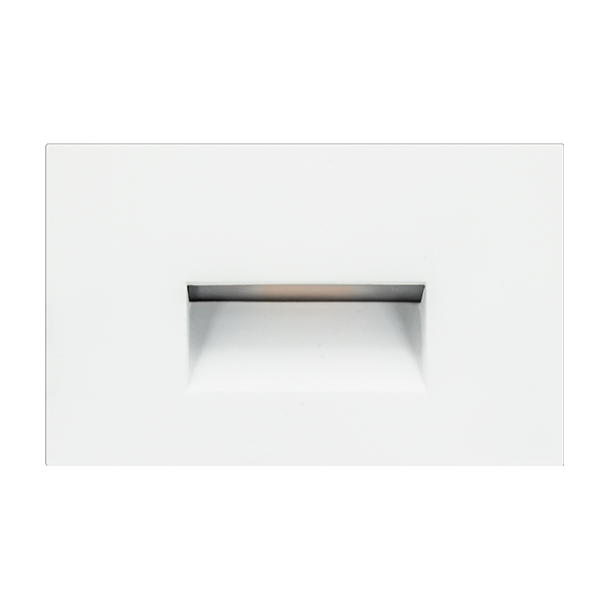

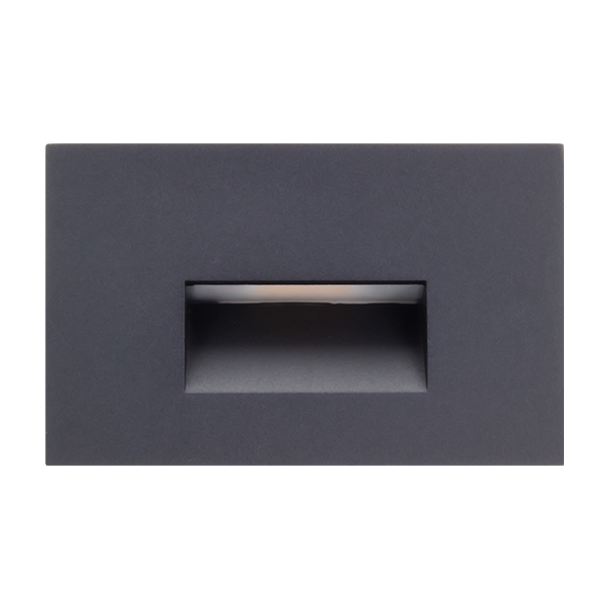

SGL4-120-30-HS Next Generation LED Step Light is part of the SGL4 Series by American Lighting. It features a horizontal slot design and is equipped with a 2W light module that provides 43Lm (BK) / 68Lm (WH) of brightness. The color temperature is 3000K with a high CRI of 90+. It is dimmable with TRIAC / CL / LED (10-100%) dimmers, allowing for adjustable lumen outputs. The light fixture is suitable for wet locations and has a rated life of 30,000 hours. It is cETLus Listed for indoor and outdoor use.
Key Features and Benefits
- Horizontal slot design
- 2W light module with 43Lm (BK) / 68Lm (WH) brightness
- 3000K color temperature with 90+ CRI
- TRIAC / CL / LED (10-100%) dimming
- Rated for wet locations
- 30,000 hours rated life
- cETLus Listed for indoor and outdoor use
Specifications
- Voltage: 120V AC / 60Hz
- Wattage: 2W
- Lumen Output: Up to 68Lm
- Color Temperature: 3000K
- CRI: 90+
- Beam Angle: N/A
- Mounting: Wall Mount (Standard single gang junction box)
- Rating: cETLus Listed (Wet Location)
- Dimming: TRIAC / CL / LED (10-100%)
- Operating Temperature: -10°C (14°F) to 60°C (140°F)
- Rated Life: 30,000 Hours
Common Uses
The SGL4-120-30-HS Next Generation LED Step Light is commonly used for illuminating steps and stairs in residential and commercial settings. It is also suitable for outdoor applications thanks to its wet location rating. The horizontal slot design adds a modern touch to any space.
RESOURCES AND DOWNLOADS
| SKU | AL-SGL4-120-30-HS |
|---|---|
| Weight | 0.00 LBS |
