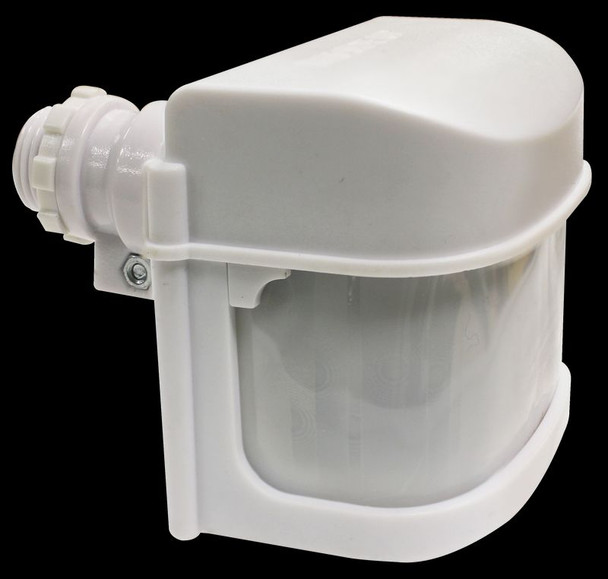

500 Watt Max. Load 240­° Motion Sensor for LED Security Lighting

Ideal for Walkways, parking lots, dock lighting, warehouses, garages, backyards, entrance ways, motel.

ELECTRICAL SPECIFICATIONS

• Max Load: 500W
• Voltage: 120VAC 50/60Hz
• Ambient Light: Night detect/Day detect: 5-50lux/35-400lux

HOUSING SPECIFICATIONS

• Polycarbonate construction
• 1/2 NPT threads fit into 1/2” weatherproof box outlets
• Installation Height: 3.2-13ft.
• Operating temperature: 14°F ~ 104°F
• Outdoor Motion Sensor (White & Bronze)
• Wet location listed

TECHNICAL SPECIFICATIONS

• Detection Range: 240°
• Detection Distance: 30~68ft. (adjustable)
• Time Setting: 1,5,20min±30%
• Dusk Time: off/3hr/6hr/dusk to dawn
• Detection Motion Speed: 2-4.9ft./s
• Operating Model: Test/Auto/Override
