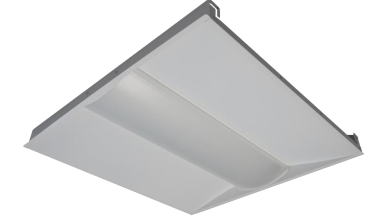

2X2 LED Center Basket Troffer, Field Selectable Lumen and Color Temperature, EM Battery Factory Installed

2x2 LED Center Basket Troffer with selectable color temperatures (3500K, 4000K, 5000K) and adjustable lumen outputs (3000 to 4300 lumens).

Key Features and Benefits

• Field selectable 3500K (warm/neutral white), 4000K (neutral white) & 5000K (cool white) color temperatures.
• Long-life LEDs provide at least 196,000 hours of operation with at least 70% of initial lumen output (L70).
• Provides a range of 3,000 to 4,300 nominal lumens.
• Uniform illumination with no visible LED pixilation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc, continuous dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index (Ra) > 80.
• Steel housing and PMMA lens.
• Easy installation in new construction or retrofit. Fits in standard 2’ x 2’ grid ceilings.
• Built-in earthquake clips provide secure installation in grid ceilings.
• Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using earthquake clips.

Specifications

• cULus listed for damp locations and insulated ceilings in ambient temperatures from -25°C to 50°C (-13°F to 122°F).
• UL listed for maximum of 4, 12 AWG through branch circuit conductor.
• Inherently protected.
• Type IC rated for insulated ceilings.
• DLC approved.
• Low risk of flicker (per IEEE1789-2015) at 100% light output level.
• Complies with FCC Part 15, class A.
• Complies with IEEE C.62.41-2002, input transient surge protection (2.5kV).
• 5-year warranty of all electronics and housing.

Common Uses

Ideal for commercial, retail, and institutional applications including offices, schools, hospitals, and retail spaces.
