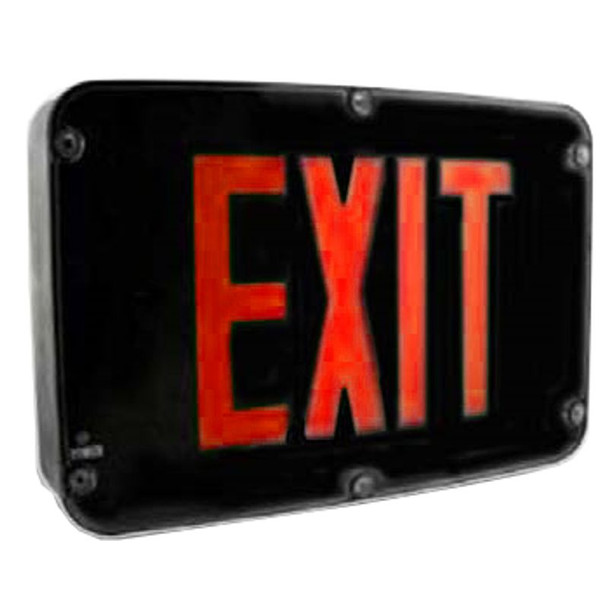

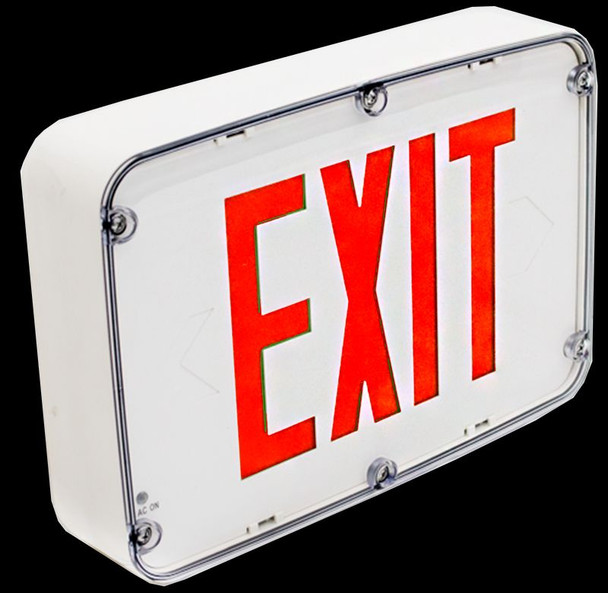

Single face NEMA 4X LED exit sign, 3.2 watts, green or red letter color, suitable for wet locations, white or black finish option, 120V/277V voltage, 3 years warranty.
ELECTRICAL SPECIFICATIONS
- Voltage: dual 120V/277V
HOUSING SPECIFICATIONS
- Reinforced polycarbonate Housing with white, gray, black finish
- Universal knockout pattern on back provided with gasket for watertight seal for back mount
- Polycarbonate mounting canopy included for top or end mount.
- EZ snap-out Chevron directional indicators
- Single or double faceplates
- NEMA4X rated
- IP Rating: IP66 Suitable for wet location
TECHNICAL SPECIFICATIONS
- LED indicator light alerts on battery condition
- 4.8V Rechargeable Ni-Cad battery
- 90-minute EM-rated with push style test switch and red indicator light
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours
WARRANTY
- Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes
RESOURCES AND DOWNLOADS
| SKU | WM-XTN4X-1 |
|---|---|
| Weight | 10.00 LBS |
| Light Source | LED |
| Driver Type | 120V/277V |
| Total Input Watts | 3.2W |
