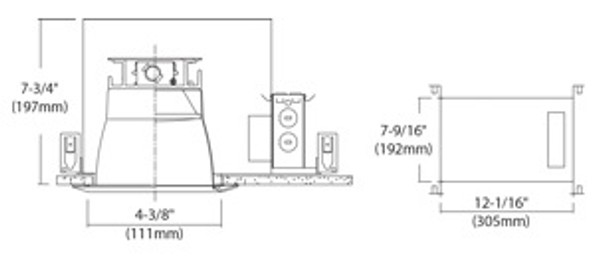

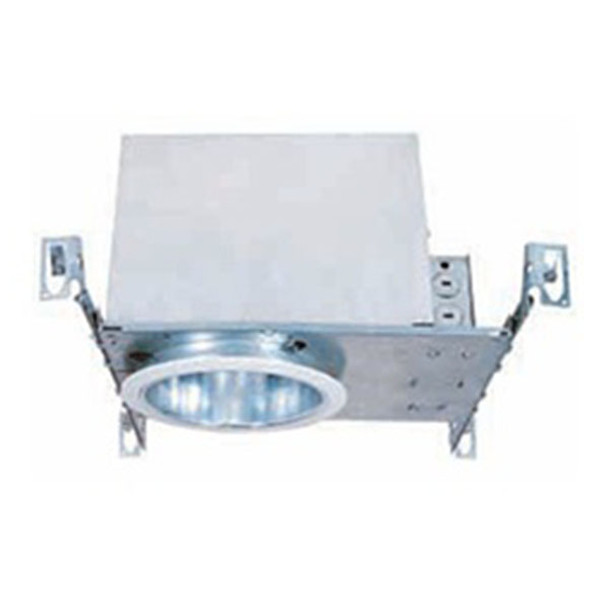

The LEDH-CFK4IC is a 4” LED, IC Commercial Flat Frame-in kit and is available with multiple Trim styles. Available with a 14W or 23W, high efficacy LED engine and universal, dimmable drivers. The special optical diffuser produces high lumen transmission and even illumination. This luminaire is listed as Type IC and is suitable for direct contact with insulation. Suitable for Wet Locations.
AVAILABLE TRIMS
| Model Number | Description |
| LT-LEDT-R44 | 4" Open Haze Clear Reflector |
| LT-LEDT-R414 | 4" Haze Clear Reflector w/ Baffle |
| LT-LEDT-R441 | 4" Baffle w/ Regressed Lens |
| LT-LEDT-R422 | 4" Haze Clear Reflector w/ Regressed Lens |
| LT-LEDT-R436 | 4" Wall Wash w/ Kick-off Plate |
| LT-LEDT-R440 | 4" Haze Clear Reflector w/ Frosted Floating Lens |
DESIGN FEATURES
MOUNTING FRAME
- Galvanized steel construction.
- Housing adjusts for ceilings up to 1-1/4” thick.
LED MODULE & TRIM
- Painted, extruded aluminum heat sink designed to facilitate efficient heat dissipation for superior thermal management and reliability.
- LED engine includes LED, heat sink and lens assembly.
- Heavy gauge aluminum reflector anodized in clear haze or white paint finishes. Multiple trim styles and finishes are available.
LED DRIVER
- Universal, 120~277V input, high efficacy drivers with dimming capability by a Triac 120V low voltage electronic dimmer switches or 0-10V, Triac & ELV dimmer switches.
- Drivers feature power factor >.90, THD <20% with integral thermal protection to sense over temperature or electrical issues.
- Driver mounts externally to the module to allow future replacement or upgrading if desired.
JUNCTION BOX
- Listed for through branch circuit wiring. (Max.8 No 12 AWG 90Ë branch circuit conductors: 4 in, 4 out)
- (5) 1/2" knockouts with pry-out slots and (4) knockouts with Romex cable clamps.
- Ground wire provided on J-box.
BAR HANGERS
- 24” Bar Hangers provide stability and support on joists and T-Bar Grid ceilings.
- Housing can be positioned at any point within 24” joist spacing.
- Score lines allow easy “bend & snap-off” shortening for 12” joist spacing.
OPTIONS
Emergency battery back-up : Available in mounted to fixture or remote, adjacent to luminaire (consult with factory for space requirements).
LIMITED WARRANTY
- LED Module: 5 years/50K hours
- Product/Driver: 3 years
LISTING
- cETLus Wet Location
- ENERGY STAR
- California Title 24
| SKU | LT-LEDH-CFK4ICA-G2-UTD |
|---|---|
| Weight | 16.00 LBS |
| Light Source | LED |
| Fixture Size | 4 Round" |
| Color Rendering Index (CRI) | 80, 90 |
| Driver Type | 120V~277V Triac Dimming (Standard) |
| Lumen Output | 950 lm & 1740 lm |
| Luminaire Efficacy Rating (LER) | 67.9 lm/W & 75.6 lm/W |
| L70 Expected Life (hours) | 50,000 |
| Color Temperature (CCT) | 2700K |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 3500K |
| Color Temperature (CCT) | 4000K |
| Total Input Watts | 14 |
| Total Input Watts | 22 |
