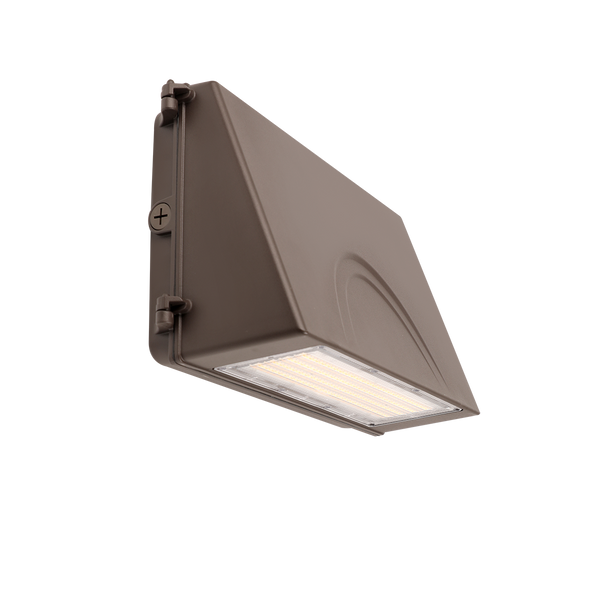

Introducing the Full Cut Off Wall Pack, a versatile lighting solution with selectable color temperatures and adjustable lumen outputs. Ideal for various applications, it ensures optimal performance and energy efficiency.
Key Features and Benefits
- Selectable color temperatures: 3000K, 4000K, and 5000K
- Lumen outputs ranging from 5,200 to 16,800 lumens
- High efficacy: up to 161 lm/W
- Long-life LEDs with L70 > 136,000 hours and L90 > 41,000 hours
- 0-10V dimming drivers standard
- Universal 120-277V AC voltage (50-60Hz)
- Color rendering index (Ra) > 80
- Cast aluminum housing with dark bronze powder coat finish
- IP65 rated for ingress protection
- cULus listed for wet locations
- DLC premium approved
- 5-year warranty on all electronics and housing
Specifications
- Lumen outputs: 5,200 to 16,800 lumens
- Wattage: 36W to 116W
- Voltage: 120-277V AC (50-60Hz)
- Color temperatures: 3000K, 4000K, 5000K
- CRI: > 80
- Surge protection: 4kV
- Power factor: > 0.90
- Total harmonic distortion: < 20%
Common Uses
Ideal for outdoor security lighting, commercial building entrances, and parking garages where high-performance, energy-efficient lighting is needed.
RESOURCES AND DOWNLOADS
| SKU | BL-WPFC-LKFS |
|---|---|
| Weight | 3.00 LBS |
| Lumen Output | 5,200 to 16,800 |
| Total Input Watts | 36W to 116W |
| Voltage | 120-277V AC (50-60Hz) |
| Color Temperature (CCT) | 3000K, 4000K, 5000K |
| Color Rendering Index (CRI) | > 80 |
