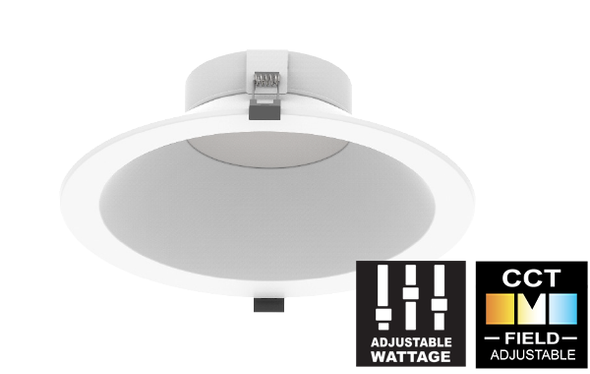

The CDL Series by Aleo Lighting offers a compact and energy-efficient solution for commercial downlighting needs. This 4-inch downlight is designed for versatility with field-adjustable lumen output and color temperature, eliminating the need for a can during installation. Ideal for both new constructions and retrofits, it replaces existing CFL and HID downlights across various mounting heights.

Key Features and Benefits

• Field adjustable lumen output and color temperature for tailored lighting solutions.
• Rugged one-piece design with integrated driver and spring-action clips for easy installation.
• Wet Location Rated, making it suitable for covered outdoor ceilings.
• ETL Listed and ENERGY STAR certified, ensuring compliance and energy efficiency.
• Tri-Mode Dimming compatibility: 0-10V, TRIAC (120V), and ELV (120V).
• Universal voltage input (120V-277V) for broad application.
• Reflector system with optimal glare control and balanced illuminance.

Specifications

• Selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K.
• Lumen outputs: 606lm to 1242lm depending on settings.
• Efficacy: 95-115 lm/W.
• Rated life: 50,000 hours.
• CRI: 90+ for excellent color rendering.
• Operating temperature range: -25°C to 40°C.

Common Uses

Ideal for commercial settings, retail spaces, educational facilities, hospitality environments, and covered outdoor ceilings. Suitable for both retrofit/remodel and new construction applications.
