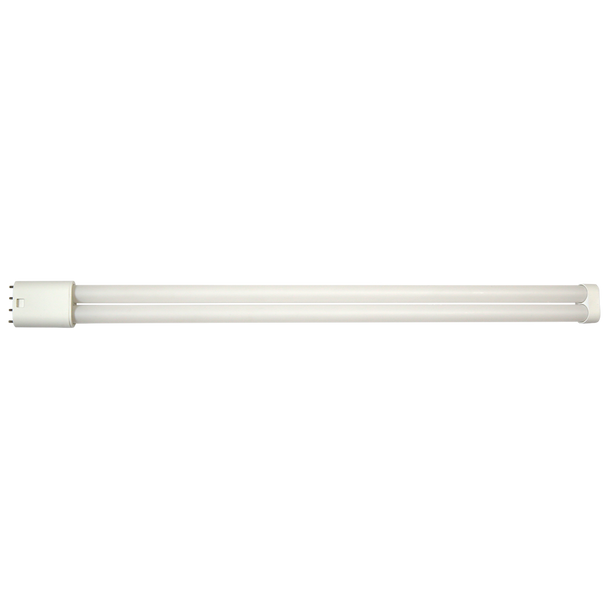

23W LED PLL lamp with 2G11 base, selectable color temperatures (3000K, 3500K, 4000K, 5000K), and adjustable lumen outputs (2600/2800 lumens).
Key Features and Benefits
- Solid state direct replacement for 2' 40W PLL compact fluorescent lamps with 2G11 base
- Operates on 120-277V line voltage
- Frosted lens for uniform diffuse appearance
- Up to 50% instant energy savings
- Instant-On with no warm up like fluorescents
- Suitable for use in totally enclosed fixtures
- Frosted glass lens reduces visual glare
Specifications
- Power Consumption: 23W
- Lumens: 2,600/2,800
- Efficacy (LPW): 113/122
- CRI: 80+
- Beam: 220°
- CCT: 3000K, 3500K, 4000K, 5000K
- Life (L70): 50,000 hours
- Power Factor: ≥0.9
- THD: <20%
- Input Voltage: 120-277V
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- Base: 2G11
- Certifications: DesignLights Consortium® Qualified; cULus Listed; FCC
- Material Usage: RoHS Compliant; no mercury or lead
- Environment: UL Listed for damp locations
Common Uses
Retail, Hospitality, Office, Ceiling Luminaires
RESOURCES AND DOWNLOADS
| SKU | E-LED23W/PLL/G8D |
|---|---|
| Weight | 1.00 LBS |
| Lumen Output | 2600/2800 |
| Total Input Watts | 23W |
| Voltage | 120-277V |
| Color Temperature (CCT) | 3000K, 3500K, 4000K, 5000K |
| Color Rendering Index (CRI) | 80+ |
