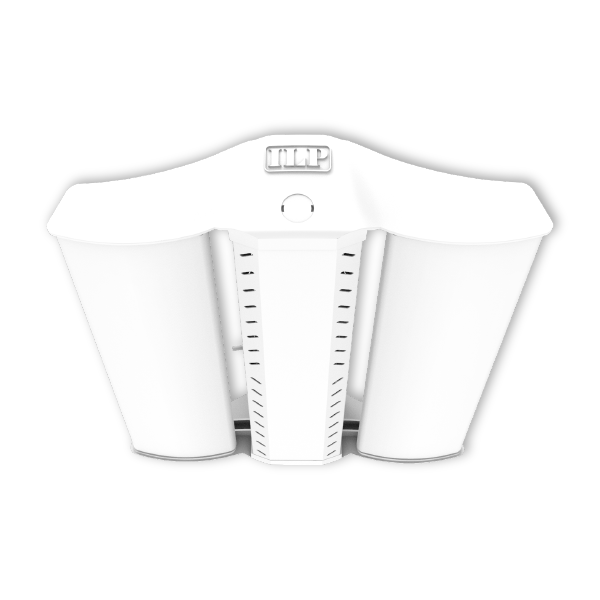

Endeavor Linear High Bay, 48,000 Lumens, 5000K, Narrow Distribution

The Endeavor Linear High Bay is a versatile and powerful lighting solution designed for industrial and commercial spaces. Its sleek design and high efficacy make it a standout in the manufacturer's lineup.

Key Features and Benefits

• Sleek Curved Polycarbonate Injection Molded End Caps
• White and black finish options
• Aluminum Body with steel channel for added rigidity
• Toolless Hinged Driver Access
• Wide & Narrow Distributions
• Impact Resistant and IP5X Rated Lens Options: Frosted Acrylic (FRL) and Frosted Polycarbonate (PFL) IK10 Impact Rated
• V-Clips for dual point chain or cable hanging (standard)
• 131°F Standard Ambient Temperature Range
• 149°F Max High Ambient Temperature Option
• 3000K –5000K CCT
• Uplight Options to optimize full room illumination
• 17 Size/Lumen packages: 2': 8L - 36L, 4': 12L - 100L
• >80 Color Rendering Index (CRI)
• Calculated L70 >100,000 hrs
• 0-10V Dimmable Driver (100%– 10%)
• 5 Year Warranty (standard); 10 Year Warranty Optional
• ETL Listed for Damp Location
• DesignLights Consortium® Premium Qualified Luminaire

Specifications

• Construction: Aluminum body with steel driver channel for maximum rigidity and thermal properties.
• Electrical: Class 2 LED light engine for high efficacy and long life. Power Factor > 0.90. THD < 20%.
• Mounting: Options include suspension chain, aircraft cables, hook, single pendant (HUB), surface mount (SMZB KIT EDV).
• Warranty: 5 Year Warranty Standard; 10 Year Warranty Optional.
• Optics: Standard without lens. Optional frosted acrylic (FRL) and frosted polycarbonate (PFL) lenses available for added LED protection and glare reduction.
• Thermal: Standard ambient temperature range -40°F up to 131°F (-40°C to 55°C), Optional high ambient temperature range -40°F up to 149°F (-40°C to 65°C).
• Controls: Factory installed Advanced and Basic integral occupancy sensor options available.
• Certifications: ETL listed to US and Canadian safety standards. Suitable for damp locations.

Common Uses

Suitable for applications such as gymnasiums, manufacturing facilities, warehouses, distribution centers, hangars, retail spaces, government facilities, and auto service bays/lanes.
