APPLICATION

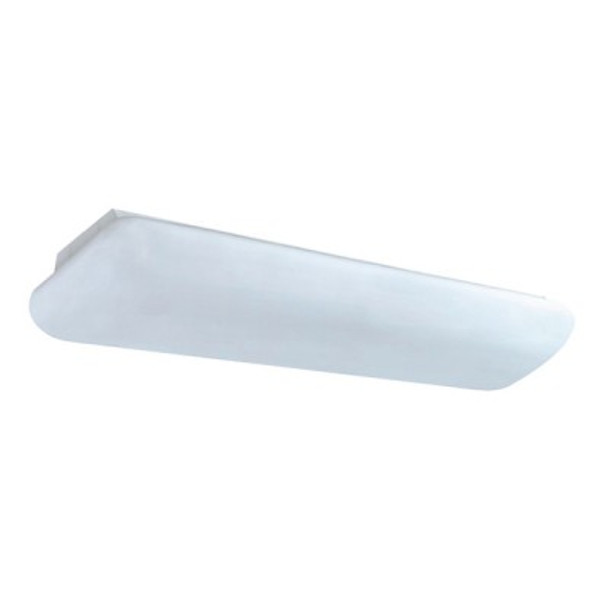

The LSMP Series of LED Puff fixtures are cost effective and are an energy-saving replacement for less efficient fluorescent puff fixtures, designed to illuminate the most discriminating office or home. A shallow contemporary opal acrylic diffuser softly and evenly distributes light at comfortable levels.

DESIGN FEATURES

• Thermal/lumen balanced light engines
• Steel construction
• Back and end knockouts
• 4000-Kelvin standard
• Low power consumption
• Can be ceiling or wall mounted
• For covered use only - damp rated
• Direct replacement of fluorescent Long Life, 60,000 hour LEDs at L80 reduce lift cycle maintenance costs
• Battery backup available for emergency egress applications

HOUSING
Rugged construction, solid die formed cold-rolled steel housing. All surfaces powder coated after fabrication. Frosted acrylic diffusers provide even consistent light while reducing glare.

MOUNTING
Suitable for surface mounting, suspension, or stem mounting, individually or in continuous rows.

ELECTRICAL
Equipped standard with fixed output driver. Optional 0-10V continuous dimming driver that works with any standard 0-10V control/dimmer. Long Life LED's 60,000 hours at L80 with projected life over 100,000 hours for reduced life cycle maintenance costs.

LISTING
All luminaires are built to UL 1598 and 2108 standards and bear appropriate ETL labels, Damp location labeling is standard. Emergency equipped fixtures labeled UL924. Adheres to LM70, LM80, and TM21 industry standards.

WARRANTY
5-year limited warranty. See complete warranty for terms and exclusions. (Labor not included).
