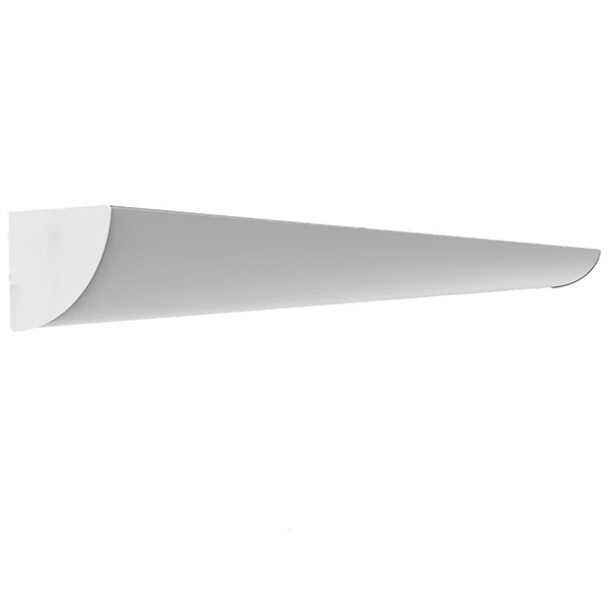

ATG’s DUO Curved Stairwell fixtures, available in 2’ and 4’ lengths with selectable wattage & CCT settings, effectively illuminate stairwells and passageways in commercial and industrial applications. The LSW’s curved design allows for ceiling-to-wall installations while offering the latest, high performance components and options such as a concealed motion sensor and emergency battery backup.
PRODUCT HIGHLIGHT
- Selectable wattage & CCT
- Up to 131 LPW
- 0 – 10V dimming
- L70 > 100,000 hours
- 10-year warranty
PRODUCT SPECS
- Input Voltage (VAC): 100-277
- Wattage: 10, 12, 14, 18, 20, 25, 30, 40
- CCT: 3000, 4000, 5000* Selectable
- Projected Lifetime: 100,000 Hrs (L70)
- Limited Warranty: 10 Years
- CRI: 80+
- Finish Color: White (JA01WZ)
- Housing: Die Cast Aluminum
- Optic Types: Frosted, Clear
- Dimming: 0-10V Dimming (0% to 100%)
- Operating Temperature: -25°C ~ 40°C
- IP Rating: IP20
RESOURCES AND DOWNLOADS
| SKU | ATG-LSC-4FT-40-T1-F-SL |
|---|---|
| Weight | 24.00 LBS |
| Light Source | LED |
| Fixture Size | 4' Linear |
| Color Rendering Index (CRI) | 80+ |
| Driver Type | 100-277 |
| Lumen Output | 4,858 |
| L70 Expected Life (hours) | 100,000 |
| Color Temperature (CCT) | Multi Color Temp |
| Total Input Watts | 40 |
