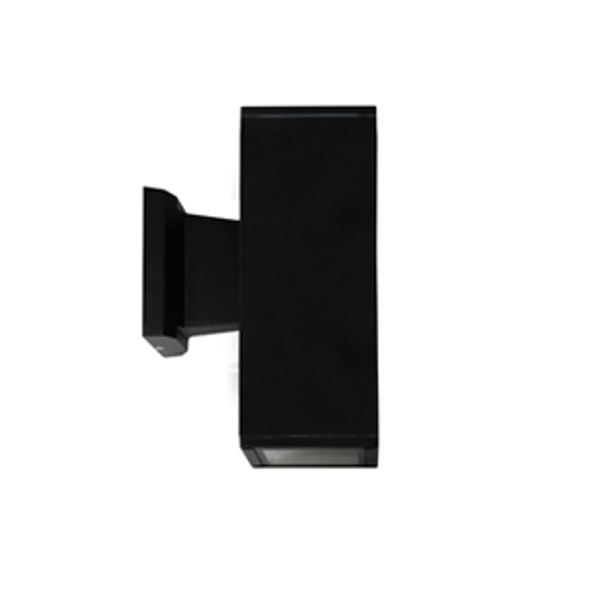

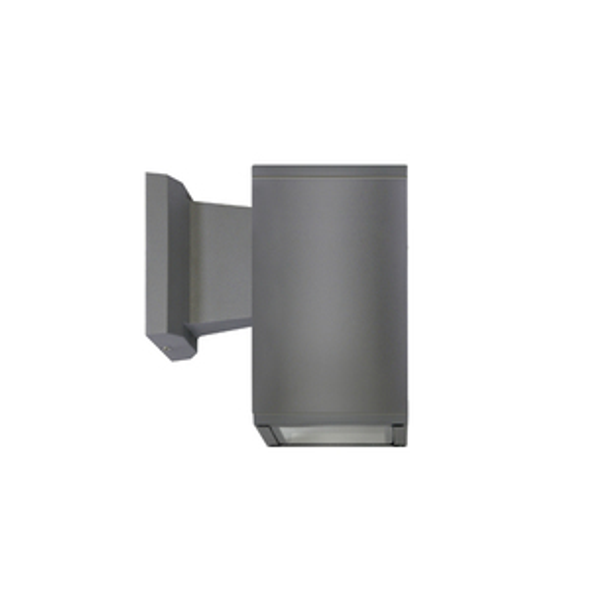

The WCED 4" Square Cylinders are a versatile outdoor lighting solution, offering both up and down lighting options. Designed for wet locations, these fixtures provide reliable and efficient lighting with selectable color temperatures and adjustable lumen outputs.

Key Features and Benefits

• All aluminum construction with powder coat finish in white, black, or silver.
• Available in 13W, 17W, and 27W LED options.
• Selectable color temperatures: 3000K, 3500K, 4000K.
• High CRI options: 80 or 90.
• Wet Location and IP65 Rated for outdoor use.
• Dimming compatible with most TRIAC, ELV, and 0-10V dimmers.
• Optional photocell for dusk to dawn operation and emergency drivers available.

Specifications

• 27W with a lumen output of 2,110 lm.
• Efficacy: 78.1 LPW.
• Beam angle: 36°.
• Operating temperature: -22°F to 104°F (-30°C to 40°C).
• Voltage: 120/277V.
• cCSA-us Wet Location Listed.

Common Uses

Ideal for outdoor wall lighting in residential and commercial settings, including patios, entrances, and building exteriors.
