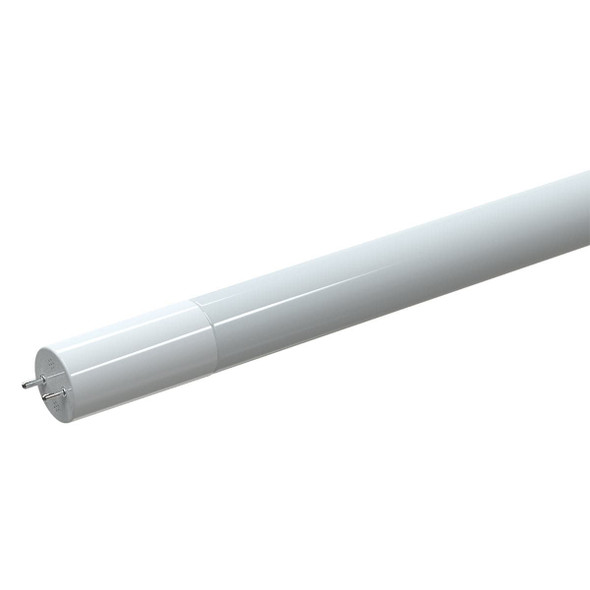

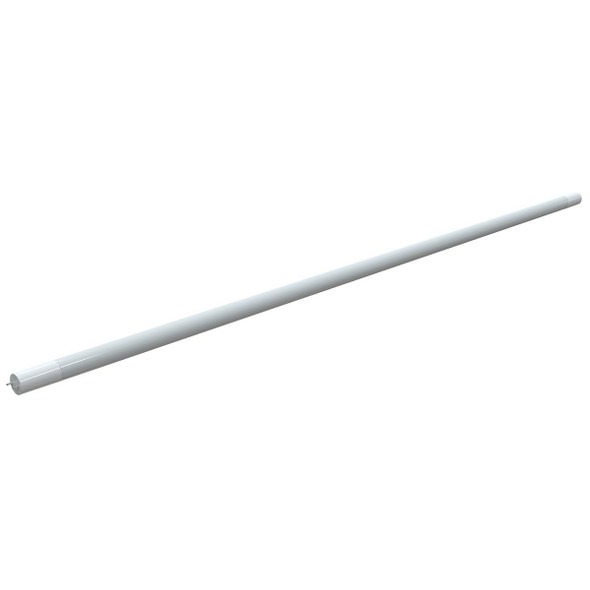

This 4ft Bypass T8 Tube from the UL TYPE-B Series offers the flexibility of single or double-ended wiring, making it an ideal retrofit solution for standard linear fluorescent fixtures. It delivers significant energy savings and long-term operational efficiency.

Key Features and Benefits

• 1600-1650 lumens output
• High efficacy of 168-173 lumens per watt
• Easy retrofit with simple ballast bypass
• Compatible with both shunted and non-shunted lamp holders
• Dimmable with external dimming module
• Suitable for enclosed fixtures
• Operates in dry and damp locations
• 5-year limited warranty
• Rated lifespan: 50,000 hours

Specifications

• Selectable color temperature: 3500K, 4000K, 5000K
• Power: 9.5W
• Input voltage: 120-277V AC
• CRI: ≥ 80
• Inner coated glass diffuser
• Beam angle: 210°
• Surge protection: 2.5 KV
• Certifications: DLC 5.1, cULus listed, FCC, RoHS Compliant, NSF/ANSI 2 - Food Equipment

Common Uses

Ideal for retrofitting existing fluorescent fixtures in commercial, industrial, and residential settings, particularly where energy efficiency and long lifespan are desired.
