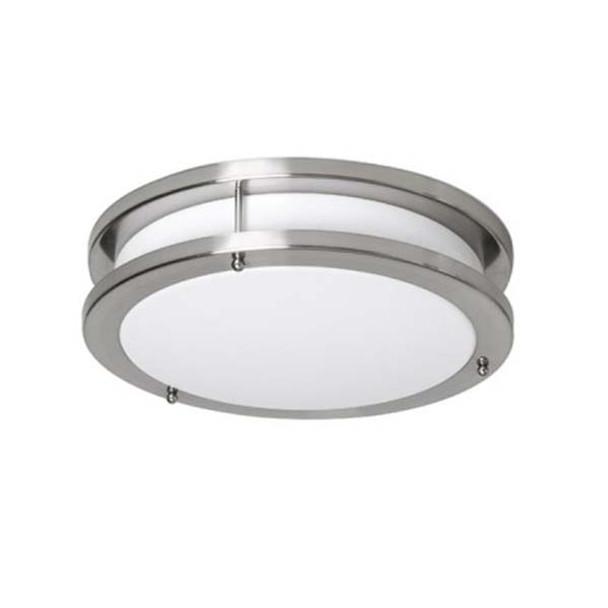

The LED Based DCR series is a ceiling or wall mount series which can be used in a broad range of residential and commercial applications. This series provides customers with a high quality luminaire utilizing the latest LED, solid state lighting and electronic driver technology for optimal performance and maximized energy efficiency. With a traditional opal white lens, the DCR series produces even, uniform light distribution and ideal choice for offices, corridors, stairways, bedroom, closet and foyers applications where customers are replacing incandescent, circline or compact fluorescent lamps.
DESIGN FEATURES
- High-transmission (White) Acrylic lens with excellent distribution and uniformity.
- Full distribution LED Luminaire
- 10-100% triac dimming, compatible with most triac dimming switches in the market
- Designed for a 50,000 hour life.
- Available in 3000K Kelvin color temperature
- Enviromentally friendly - contains no mercury or other hazardous
HOUSING
Contemporary sllyed fixture. Twin steel rings surround a milk white acrylic diffuse provides widespread and even illumination
MOUNTING
Designed for mounting on 4" electrical
ELECTRICAL
Equipped standard with 120V 15-100% triac dimming driver.
LISTING
All luminaires are built to UL 1598 and 2108 standards, and bear appropriate ETL labels. Damp location labelling is standard. Emergency equipped fixtures labeled UL924. Adheres to LM70, LM80, and TM21 industry standards.
WARRANTY
3 year limited warranty. See complete warranty for terms and exclusions. (Labor not included).
RESOURCES AND DOWNLOADS
| SKU | GL-DCR |
|---|---|
| Weight | 10.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Color Rendering Index (CRI) | 90 |
| Driver Type | 120V Triac Dimming |
| Lumen Output | 1300 lm |
| L70 Expected Life (hours) | 50,000 hrs |
| Color Temperature (CCT) | 3000K |
| Total Input Watts | 13 |
