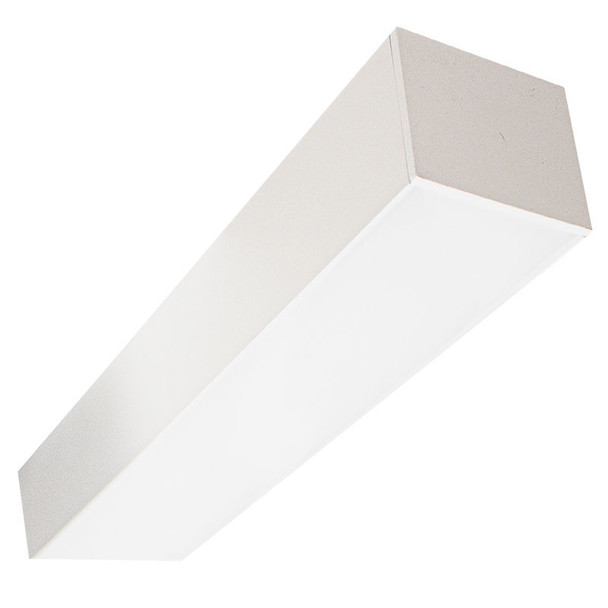

1Ft. LED 10W linear lighting system with selectable color temperatures (3000K/3500K/4000K/5000K) and adjustable lumen output of 1100LM. Ideal for modern indoor applications.
Key Features and Benefits
- LED Superior Architectural Lights
- Seamless Linkable Linear Lighting System
- Opal Polycarbonate Lens-Direct (DOWN) Lighting
- Optional Recessed & Wall Mounting Kits Available
- Optional Louver Version Lens Available
- Multi-Color Temperature (Selectable with Switch Inside Fixture)
- Low Profile Modern Design
- Aluminum Housing With Matte White Finish
- Custom Colors Available
- Lens Snaps into Housing
- Make Different Connections Via T/L/X Joints on Both Ends
- Mounting Options: Surface, Suspended, Wall, Recessed
- IP Rating: IP54
- Adjustable Suspension Brackets Provided on Top of The Fixtures
- 50,000 Hours Rated Life
- 5-Year Warranty
Specifications
- Voltage: 120-277V AC 50/60Hz
- Wattage: 10W
- Power Factor: >0.95
- LPW: 110
- Total Harmonic Distortion: ≤ 20%
- Beam Angle: 104.8°(H) x 100.5°(V)
- Color Rendering Index: CRI ≥ 80
- Dimmable: 0~10V Dimming
- Operating Temperature: -13°F~104°F
Common Uses
Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and other modern indoor applications.
RESOURCES AND DOWNLOADS
SCX4 Series 1Ft. LED 10 Watt Seamless LED Linkable Linear Lighting System Spec Sheet
| SKU | WM-SCX4-1FT-10W-MCT4-D |
|---|---|
| Weight | 10.00 LBS |
| Lumen Output | 1100LM |
| Total Input Watts | 10W |
| Voltage | 120-277V AC 50/60Hz |
| Color Temperature (CCT) | 3000K/3500K/4000K/5000K |
| Color Rendering Index (CRI) | ≥ 80 |
