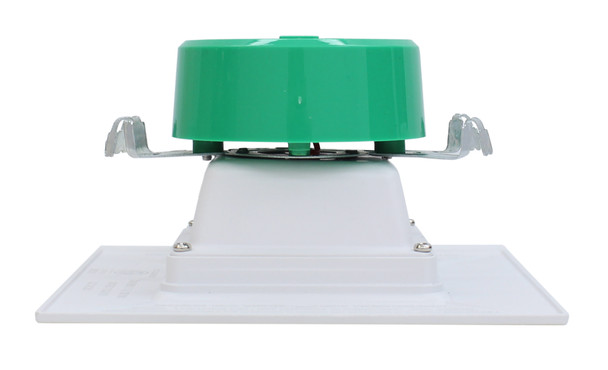

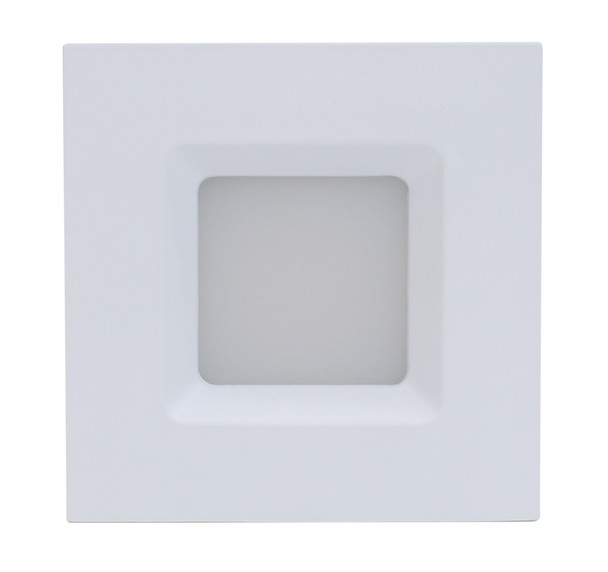

SDL Series 10 Watt Smooth LED Square Trim - CCT Adjustable

Introducing the SDL Series Smooth LED Square Trims, the perfect lighting solution for those seeking energy-efficient, versatile illumination. Rated at 10 watts, these trims deliver between 631 and 714 lumens, depending on the chosen color temperature, which is adjustable from 2700K to 5000K to suit diverse lighting needs. With an impressive rated life of up to 50,000 hours and a 5-year limited warranty, this fixture is designed for longevity and reliability in any residential or commercial setting, including damp locations.

These LED retrofit trims provide a flexible lighting system ideal for various applications—whether it's closets, storage areas, attics, corridors, or general lighting for new construction and retrofit projects. The trims are crafted from spun aluminum with a white powder coat finish, ensuring a sleek and modern appearance that blends seamlessly with any decor.

FEATURES

• 4” Recessed Smooth Trim

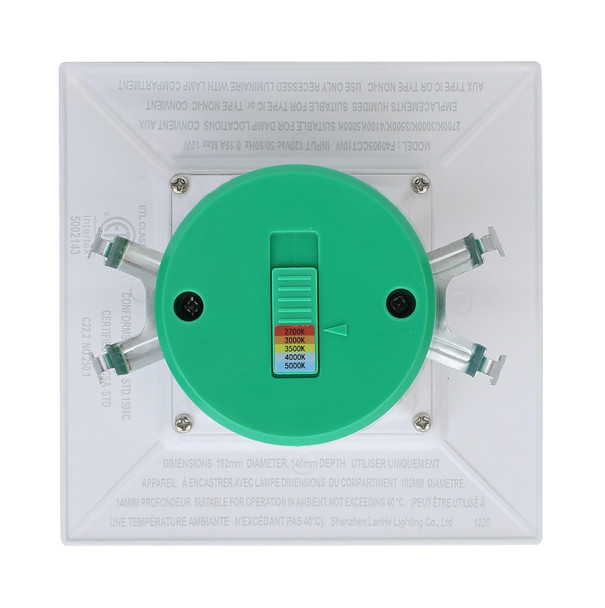

• Multi CCT (Selectable Switch on the Back of the Driver)
• Isolated Driver for Improved Thermal Management
• 5-Year Warranty
• Spun Aluminum with White Powder Coat Finish

ELECTRICAL

• Voltage: 120V AC
• Output Voltage: 36VDC
• Power Factor: >0.90
• Wattage: 10W
• Efficacy: 66 LPW
• Total Harmonic Distortion: ≤15%

MECHANICAL

• Spun Aluminum with White Powder Coat Finish
• Includes 8” Medium Base E-26 Screw-in Adapter That Fits any Standard Incandescent Down-light
• Maximum Ambient Temperature: 104°F
• Fits in Standard 4” Recessed Housings
• Rated life: 50,000 hrs
• Suitable for Damp Locations

LIGHTING

• Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)
• LED: Epistar Chip (COB) and Driver—35,000-hour Design Life
• Can Rotate after Installation to Align
• Optics: White Translucent Acrylic Lens
• Total Lumens: 658LM Max.
• Multi Color Temperatures: 2700K/ 3000K/ 3500K/ 4000K/ 5000K
• Multi CCT (Selectable Switch on the Back of the Driver)
• Color Rendering Index: CRI ≥ 90

APPLICATIONS

• Perfect for retrofit and new construction uses, these trims are ideal for closets, storage areas, attics, corridors, or general lighting solutions in residential and commercial settings.
