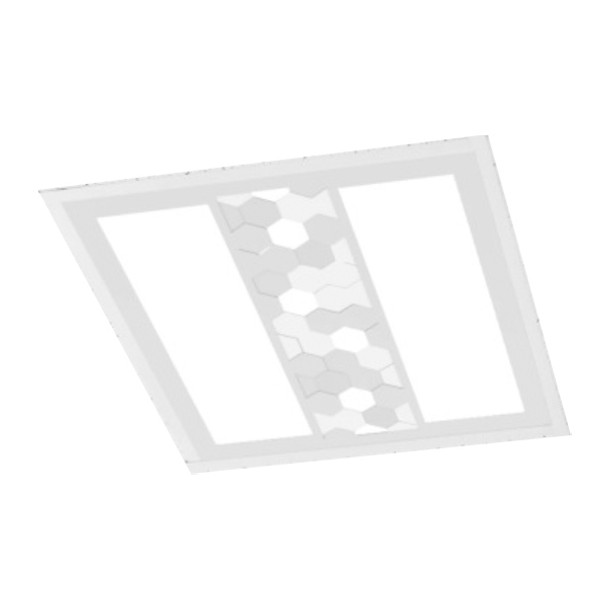

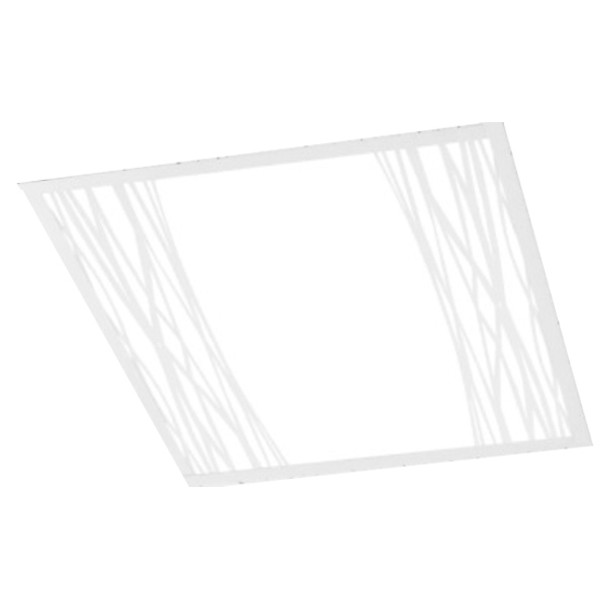

The VPAN22-U-CCTS is a versatile 2x2 LED back-lit flat panel fixture designed for customizable illumination with selectable lumen outputs and color temperatures. Ideal for various commercial and institutional settings.
Key Features and Benefits
- Low glare smooth uniform illumination
- Robust die-formed housing with post-paint finish
- Compatible with acoustic drop panels for sound absorption
- Multiple mounting options: grid, flange, surface, suspended, skylight, and skylight tilt
- Suitable for 15/16” and 9/16” T-grid ceiling types
- Field selectable or factory set lumen and CCT outputs
- 2,700 to 4,400 delivered lumen range for 2x2 size
- Selectable CCTs: 3500K, 4000K, 5000K
- >80 Color Rendering Index (CRI)
- Calculated L70 >100,000 hours
- 120-277V
- Type IC rated for insulation contact
- 5-year warranty
- ETL listed for dry and damp locations
- DesignLights Consortium® qualified luminaire
Specifications
- Size: 2x2
- Lumen Range: 2,700 to 4,400lm
- Color Temperature: 3500K, 4000K, 5000K
- Voltage: 120-277V
- CRI: >80
- Lifespan: Calculated L70 >100,000 hours
Common Uses
Ideal for education, healthcare, commercial offices, retail, grocery stores, and hospitality settings.
RESOURCES AND DOWNLOADS
| SKU | ILP-VPAN22-U-CCTS |
|---|---|
| Weight | 20.00 LBS |
| Lumen Output | 2,700 to 4,400lm |
| Voltage | 120-277V |
| Color Temperature (CCT) | 3500K, 4000K, 5000K |
| Color Rendering Index (CRI) | >80 |
