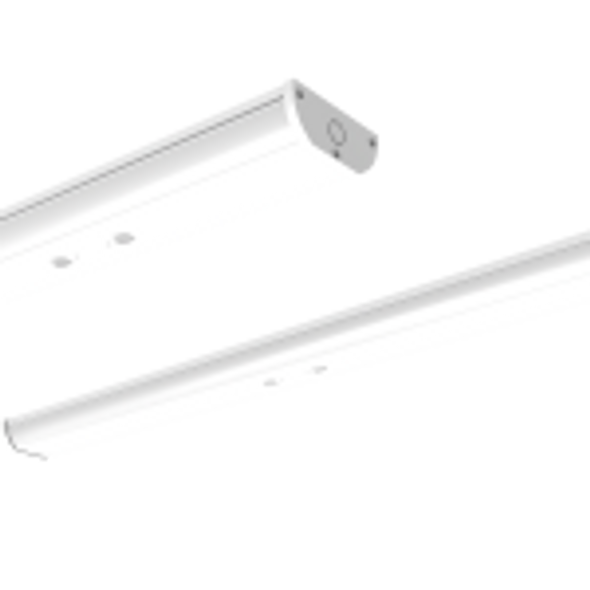

The 4ft. Linear Corner Corridor Fixture is a versatile and energy-efficient lighting solution designed to meet a wide range of application needs. This fixture features selectable wattages of 20W, 30W, and 40W, providing an output of 2,300, 3,450, and 4,600 lumens respectively. With multiple color temperature options (3500K, 4000K, and 5000K), this LED light is perfect for various settings like corridors, stairwells, public rooms, schools, hospitals, and utility areas. Rated for up to 50,000 hours of use, this fixture is backed by a 5-year limited warranty to ensure long-lasting performance.
Product Features
- Selectable wattages: 20W/30W/40W
- Multi-color temperature: 3500K/4000K/5000K
- Output: 2,300/3,450/4,600 lumens
- 50,000 hours rated life
- 5-year limited warranty
Electrical Specifications
- Voltage: 120-277VAC 50/60Hz
- Power factor: >0.98
- Efficacy: 115 LPW
Mechanical Design
- Heavy die-formed steel housing with white powder coat
- Frosted diffuse polycarbonate lens
- Surface mount and wall mount options
- Operating temperature: -22°F to 104°F
- Suitable for damp locations
Lighting Performance
- Dimmable: 0~10V dimming
- Color Rendering Index (CRI): ≥80
- Multi-CCT selectable switch inside fixture
Applications
- Ideal for architectural lighting solutions, industrial, commercial, and residential applications
Resources and Downloads
| SKU | WM-LCL-4FT-40W-MCTP |
|---|---|
| Weight | 6.00 LBS |
| Light Source | LED |
| Fixture Size | 4' Linear |
| Color Temperature (CCT) | MCT |
| Total Input Watts | 20W/30W/40W |
| Color Rendering Index (CRI) | > 80 |
| Driver Type | 120-277VAC |
| Lumen Output | 2,300/3,450/4,600 |
| Luminaire Efficacy Rating (LER) | 115lm/w |
| L70 Expected Life (hours) | 50,000 |
| Total Input Watts | 20W |
| Total Input Watts | 30W |
| Total Input Watts | 40W |
| Lumen Output | 115/W |
| Color Temperature (CCT) | 3500K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Voltage | 120-277V |
| Color Rendering Index (CRI) | >82 |
| L70 Expected Life (hours) | <50000 |
| Listings and Ratings | UL |
