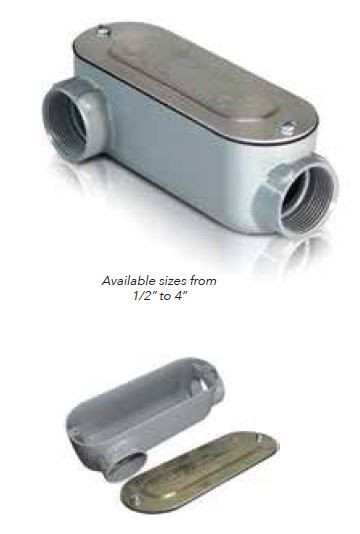

2-Inch Threaded Conduit Body - Cover and Gasket Included

The WM-LR-200CG 2-inch threaded conduit body is your ideal solution for various wet location applications. Constructed from die-cast aluminum and finished with a gray powder coat, this conduit body offers both durability and excellent protection against corrosion. The product comes fully assembled with a cover and gasket, ensuring it is ready for installation upon arrival. Protective peel-off tape on the cover safeguards the integrity of the lettering, making it ready for immediate use on job sites.

Specifications

• UL listed for guaranteed safety and compliance
• Available trade sizes range from ½" to 4" NPT
• Material: Robust die-cast aluminum with corrosion-resistant screws
• Color: Gray powder coat finish with a clear anodized cover
• Includes cover and gasket for a seamless installation
• Polyester powder-coated finish for added durability
• NEMA 3R rated for superior weather protection and scratch resistance
• Features protective peel-off tape on the cover to prevent defacing
• Equipped with a combination screw head: Phillips, flat blade, and pan head
• Conduit body arrives fully assembled and shrink-wrapped with a UPC bar code label

Applications

• Attaches directly to rigid or IMC threaded conduit or EMT using standard electrical fittings
• Large wiring chamber simplifies wire pulling and feed-through processes
• Ideal for electrical service entrance work or as an in-line pull box to provide extra pulling space
