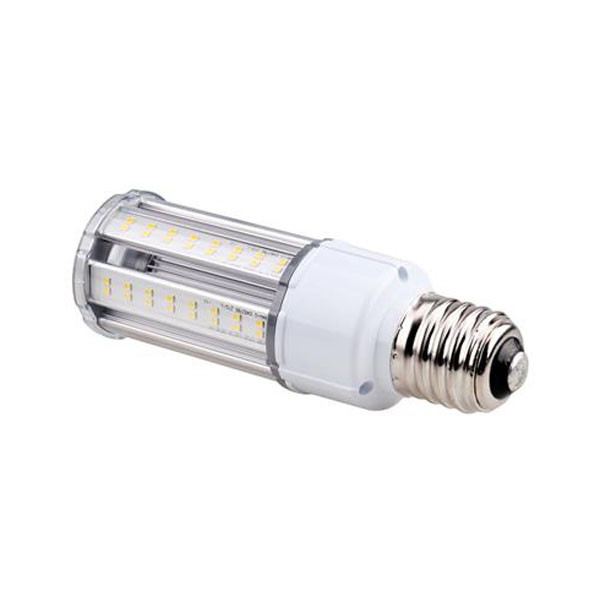

LED post top power selectable lamp, E39 base - generation 4, non-dimmable, 12/ 18/ 27 power selectable, 4,050 lumens, available in 5000K color temperature (CCT), up to 50,000 hours rated life, suitable for damp locations, 5 years limited warranty.
SUGGESTED APPLICATIONS
- Replaces traditional Metal Halide, High Pressure Sodium, Mercury Vapor, and Fluorescent lamps
- Commerical indoor and outdoor settings such as acorns, post top and high bay applications1
- Suitable for open or enclosed fixtures in dry or damp locations
FEATURES
- Thermal sensing technology reduces power in extreme temperatures to protect lamp
- Ballast bypass operation - no ballast or external driver required
- 360° beam angle provides full light distribution
- Power selectable models available: choose 3 power levels in a single fixture for adjustable lumen output
- Optional motion and standby dimming sensor available for 80W-120W models
- Choose from E26 and E39 and EX39 bases (available bases vary by wattage)
- (2) 2.5' safety cables included with 80W-120W models for secondary support
GENERAL SPECIFICATIONS
- Input Voltage:
- 12W-18W: 100-277V
- 27W-120W: 120-277V
- Frequency: 50/60Hz
- Power Factor, THD %: >0.9, ≤20%
- Minimum Efficacy: Up to 150 LPW
- Non-Dimmable
- Minimum CRI: 80
- Beam Angle: 360°
- Functional Life (L70): 50,000 hours
- Ambient Operating Temperature: -40°F to 140°F
- Operating Position:
27W-54W: Universal
80W-120W: Base up/base down
RESOURCES AND DOWNLOADS
| SKU | TPZ-LPT27W-850-E39-G4 |
|---|---|
| Weight | 1.00 LBS |
| Light Source | LED |
| Fixture Size | - |
| Driver Type | 120-277V |
| Lumen Output | 4,050lm |
| Luminaire Efficacy Rating (LER) | Up to 150lm/W |
| Color Rendering Index (CRI) | 80 |
| L70 Expected Life (hours) | 50,000hrs |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 27W |
