Key Features and Benefits

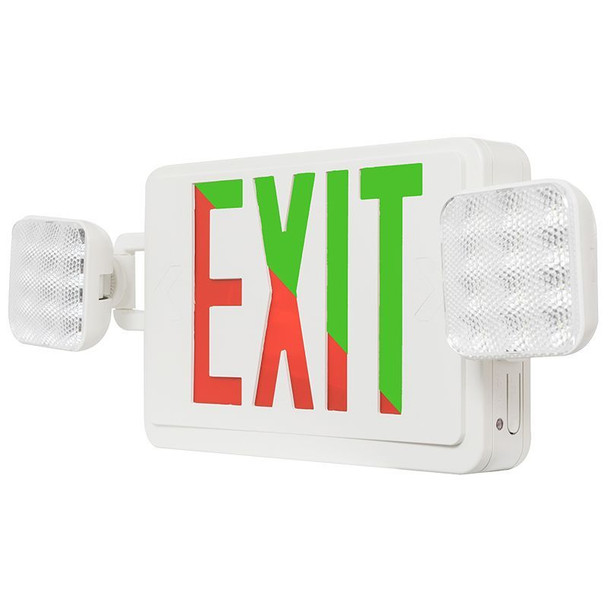

• 2-in-1 Combo Design: The XTU-CL-RG-EM-RC serves as both an exit sign and an emergency light, ensuring compliance with safety regulations and providing a comprehensive emergency lighting solution.
• Color-Selectable Exit Sign: With color-selectable options, this unit allows you to choose between red and green letters for the exit sign, providing flexibility to suit different preferences and applications.
• Emergency Lighting: The integrated emergency light ensures continued illumination in the event of a power outage, enhancing safety during evacuation.
• 3.5W Power Rating: The low power consumption of 3.5W makes this combo unit an energy-efficient choice for emergency lighting needs.
• Remote Capable: The RC (Remote Capable) feature allows for remote testing and monitoring, facilitating maintenance and ensuring reliability.
• Neutral Color Temperature: The 6132K color temperature provides a neutral white light, enhancing visibility in emergency situations.
• Solid-State Transfer Switch: Automatically connects the internal battery to the LED board for a minimum of 90-minute emergency illumination.
• Quick Recharge Time: Fully recharges in 24 hours with a built-in 3.6V 2400mAh Ni-Mh battery.
• Durable Construction: Features an injection-molded thermoplastic ABS housing with a UL 94V-0 flame rating and a polycarbonate cover.

Technical Specifications

• Type: Exit and Emergency Combo Unit
• Color Options: Color-Selectable (Red/Green Letters)
• Power: 3.5 Watts
• Color Temperature: 6132K
• Total Lumens: 8 (AC) / 272 (DC)
• Battery: Built-in 3.6V 2400mAh Ni-Mh battery
• Operation Temperature: 32°F~104°F
• Dimensions: 23 9/10" (W) x 10 1/4" (H) x 4 1/5" (D)
• Voltage: 120/277V AC Dual Voltage Operation
• Light Head Wattage: 2.4W Per Head
• Sign Wattage: 3.5W
• AC Charging Current: 32mA
• Mounting: Universal J-box mounting pattern
• Flame Rating: UL 94V-0
• IP Rating: IP20, Indoor Use Only
• Warranty: 3-Year Warranty
