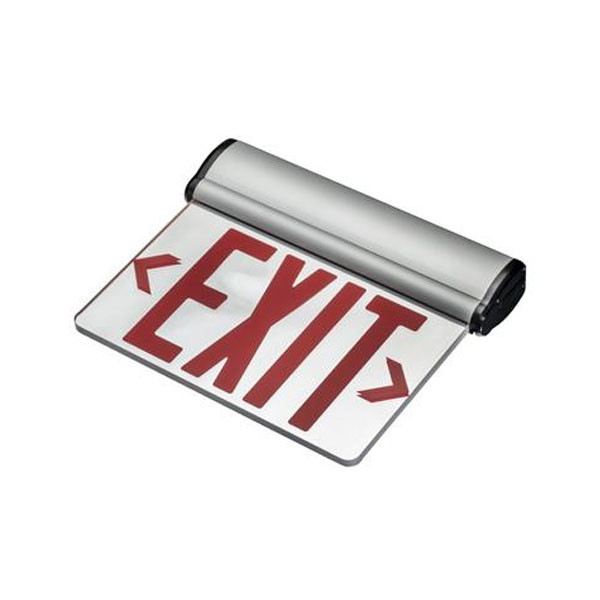

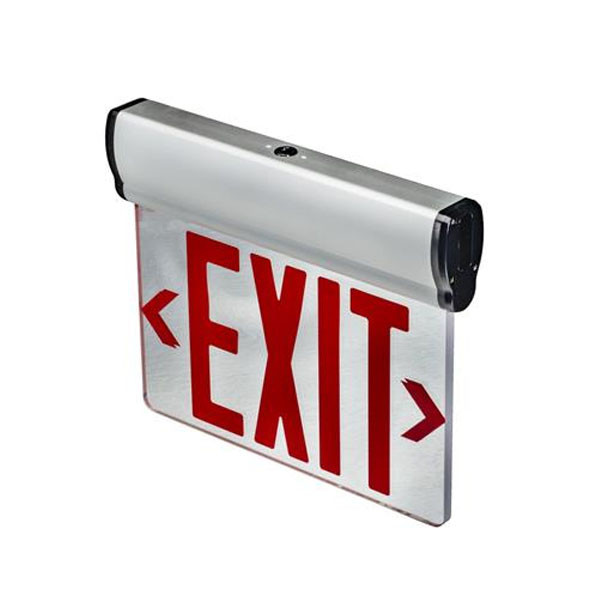

LED double face mirror edge lit exit sign with battery backup, 3 watts, average 55 cd/m2 lumens/illuminance, 24 hours recharge time, red or green finish, suitable for damp locations, 5 years limited warranty.

EASY TO INSTALL SAFETY SOLUTIONS

Topaz’s LED Edge-Lit Exit Signs are the ideal safety solution for office, industrial, retail and public places. Always ensure exits are clearly marked, even in the event of a power failure with the built-in 90-minute battery backup. These modern units have a clean look, with clear or mirrored panel and your choice of red or green EXIT letters. Surface mount installation is easy with the included canopy and mounting accessories.

FEATURES

• Meets NFPA 70, NFPA 101, UL924, NEC/OSHA Standards
  Battery backup with accessible test button for 90 minutes of illumination during a power outage
• Clear, single face or mirrored, double face configurations available
• Configurable arrows
• Ceiling, wall, or side mounting capability
• Recessed mount kit sold separately

SUGGESTED APPLICATIONS

• Office, industrial, retail and other public spaces

GENERAL SPECIFICATIONS

• Input Voltage, Frequency Hz: 120/277V, 60Hz
• Emergency Backup: Yes
• Emergency Duration / Run Time: 90 minutes
• Recharge Time: 24 hours
• Recycle Times: 500 cycles
• Mounting Height: 7.5 ft to 15 ft
• Location Rating: Damp
• Ambient Operating Temperature: 50°F to 104°F
• Battery Type: 4.8V Ni-Cad
