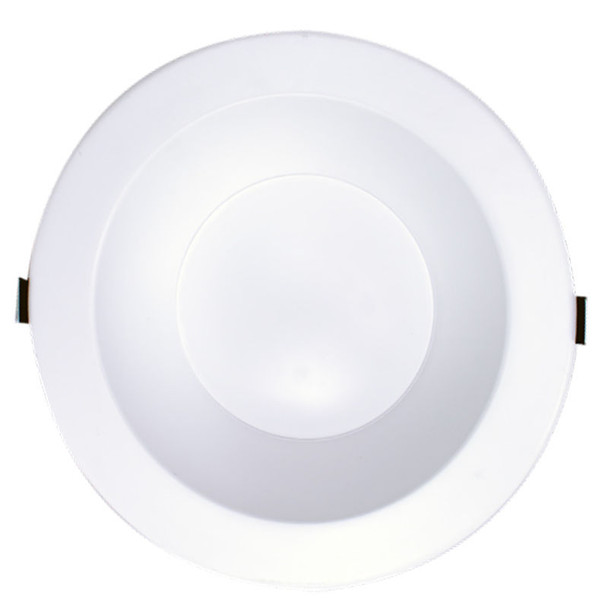

Westgate CRLE Series 4" Round LED Downlight
The Westgate Manufacturing CRLE Series Residential Lighting introduces the highly efficient 4" Round LED Downlight, model CRLE4-5-12W-MCTP-WH. This versatile lighting solution is perfectly suited for both new and retrofit residential and commercial applications, offering exceptional flexibility and performance.
Key Features and Benefits
- Multi CCT: Adjust color temperature with a selectable switch located on the back of the driver.
- Isolated Driver: Enhanced thermal management for longer lifespan and reliability.
- High Efficacy: Delivers a luminous efficacy of 100 lumens per watt, ensuring bright, energy-efficient lighting.
- Longevity: Boasts a long operational lifespan of 50,000 hours for enduring performance.
- Safety: IC-rated and suitable for damp locations, increasing installation versatility.
- Warranty: Backed by a 5-year warranty for peace of mind.
Technical Specifications
- Power Factor: Greater than 0.90
- Wattage Options: Configurable at 5W, 7W, or 12W to suit different lighting needs.
- Total Harmonic Distortion: Less than 15%
- Beam Angle: Wide coverage with a beam angle of 100°-110°
- Color Rendering Index: Greater than 80, ensuring natural color quality.
Common Applications
This LED downlight is ideal for illuminating closets, storage areas, attics, and corridors. It is also an excellent choice for general lighting solutions in both residential and commercial environments.
Resources and Downloads
| SKU | WM-CRLE4-5-12W-MCTP-WH |
|---|---|
| Weight | 2.00 LBS |
| Total Input Watts | 5W |
| Total Input Watts | 7W |
| Total Input Watts | 12W |
| Lumen Output | 100/W |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Voltage | 120-277V |
| Color Rendering Index (CRI) | >90 |
| L70 Expected Life (hours) | 50,000 |
