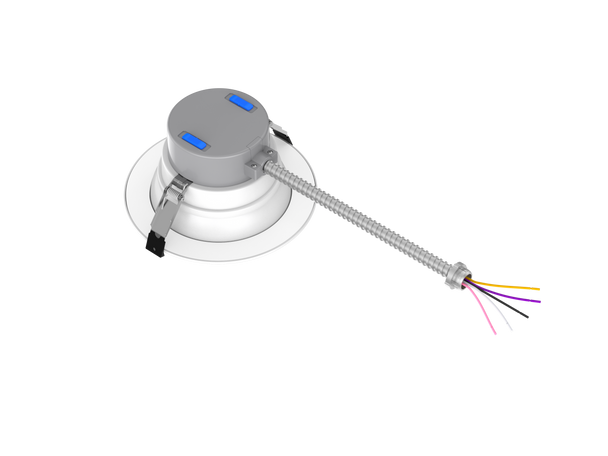

Commercial Downlight, 6”, 40/35/30/25/20W, 80+ CRI, 27/30/35/40/5000K, 120-277V, 0-10V Dimming, White

6” Commercial Downlight with selectable color temperature (27/30/35/40/5000K) and adjustable lumen outputs (40/35/30/25/20W).

Key Features and Benefits

• Provides comfortable diffused light
• PowerSet feature allows for 5 set and forget lumen stops
• FieldCCeT feature allows for 5 set and forget CCT options
• Suitable for new construction or remodel applications
• Easy Installation due to spring-loaded heavy duty brackets
• Deep recessed light source for lower glare

Specifications

• High efficacy, up to 100 lm/W
• PowerSet: 40/35/30/25/20W
• FieldCCeT: 27/30/35/40/5000K
• CRI: >80
• Beam Angle: 90°
• Estimated L70: 100,000 Hours
• Input Voltage: 120-277V
• Dimming: 0-10V
• Surge Protection: 2.5kV
• Power Factor: >0.9
• THD: <20%
• Ambient operating temperature: -4°F to 113°F (-20°C to 45°C)
• Powder coated aluminum reflector and trim
• Designed as one complete unit: driver, housing and lens
• ETL, ENERGY STAR Approved, IC Rated, Wet Location, RoHS Compliant, FCC Compliant, ICES-005 Compliant, IP54 Rated

Common Uses

Reception/Lobby, Retail/Storefront, Dr. Offices/Waiting/Patient Rooms, Admin/Class/Conference/Meeting Rooms/Library, Multi-Residential (Dorms/Apartments), Gyms & Athletic Facilities, Industrial/Commercial Offices
