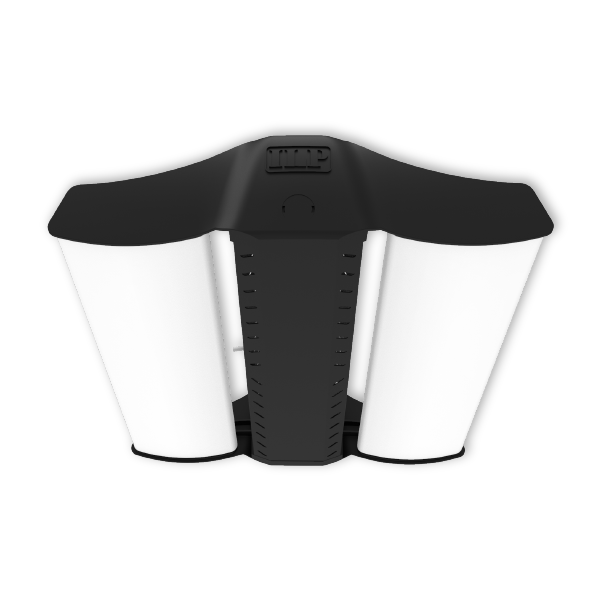

4' high bay LED fixture with 24000 lumens output, selectable 3500K color temperature, and narrow distribution frosted acrylic lens.
Key Features and Benefits
- Sleek Curved Polycarbonate Injection Molded End Caps
- Aluminum Body with steel channel for added rigidity
- Toolless Hinged Driver Access
- Narrow Distributions
- Impact Resistant and IP5X Rated Lens
- V-Clips for dual point chain or cable hanging
- 131°F Standard Ambient Temperature Range
- 3500K CCT
- 17 Size/Lumen packages
- >80 Color Rendering Index (CRI)
- Calculated L70 >100,000 hrs
- 0-10V Dimmable Driver (100%–10%)
- 5 Year Warranty (standard)
- ETL Listed for Damp Location
- DesignLights Consortium® Premium Qualified Luminaire
Specifications
- Model: EDV4-24L-U-35-ND-FRL
- Lumens: 24000lm
- Color Temperature: 3500K
- Lens: Narrow Distribution Frosted Acrylic Lens
- Efficacy: 147 lm/W
- Ambient Temperature Range: -40°F to 131°F
- Dimming: 0-10V Dimmable Driver (100%–10%)
- Certifications: ETL Listed, DLC Premium Qualified
Common Uses
Ideal for gymnasiums, manufacturing facilities, warehouses, distribution centers, hangars, retail spaces, government facilities, and auto service bays/lanes.
RESOURCES AND DOWNLOADS
| SKU | ILP-EDV4-24L-U-35-ND-FRL |
|---|---|
| Weight | 35.00 LBS |
