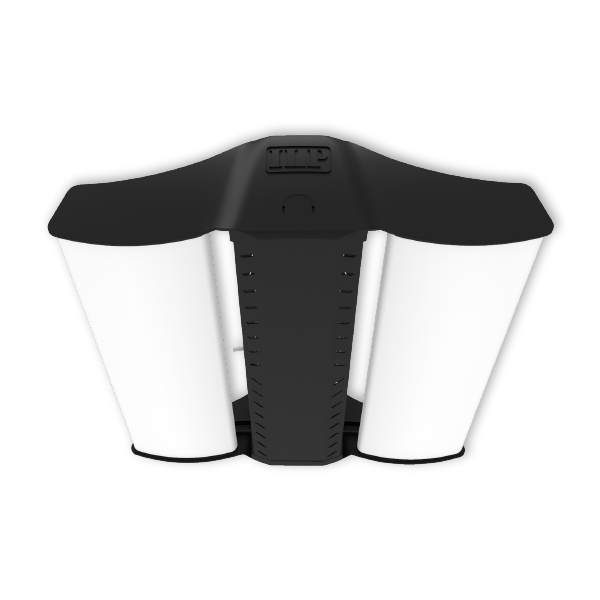

This 4' high bay fixture offers 36,000 lumens, a selectable color temperature of 4000K, and narrow distribution with a frosted acrylic lens. Ideal for a variety of industrial applications, it combines robust construction with high efficiency.
Key Features and Benefits
- Sleek Curved Polycarbonate Injection Molded End Caps
- Toolless Hinged Driver Access
- Narrow Distributions
- V-Clips for dual point chain or cable hanging (standard)
- 131°F Standard Ambient Temperature Range
- 4000K CCT
- 17 Size/Lumen packages
- >80 Color Rendering Index (CRI)
- Calculated L70 >100,000 hrs
- 0-10V Dimmable Driver (100%– 10%)
- 5 Year Warranty (standard)
- ETL Listed for Damp Location
- DesignLights Consortium® Premium Qualified Luminaire
Specifications
- Lumens: 36,000 lm
- Color Temperature: 4000K
- Lens: Frosted Acrylic
- Distribution: Narrow
- Fixture Efficacy: 133 lm/W
- Housing: Aluminum Body with Steel Channel
- Mounting: Pendant
- Certifications: ETL Listed, DLC Premium
- Warranty: 5 years standard
- Ambient Temperature Range: -40°F to 131°F (-40°C to 55°C)
Common Uses
Ideal for gymnasiums, manufacturing facilities, warehouses, distribution centers, hangars, retail spaces, government facilities, and auto service bays/lanes.
RESOURCES AND DOWNLOADS
| SKU | ILP-EDV4-36L-U-40-ND-FRL |
|---|---|
| Weight | 35.00 LBS |
