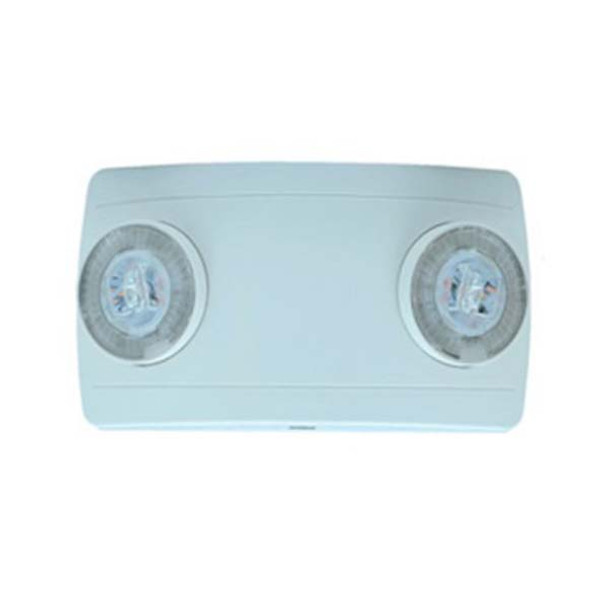

Compact High Output Self Diagnostic Emergency

PRODUCT DESCRIPTION

When normal utility power fails, the internal solid-state transfer switch automatically connects the internal battery to the LED lamps, lighting a path of egress for no less than 90 minutes. When utility power is restored the battery is recharged by the onboard solid-state recharger. Full recharge is accomplished within 12 hours.

CONSTRUCTION

• Damp location listed made of high impact thermoplastic and flame retardant housing
• Low profile, ultra slim design
• Completely Self-contained
• A basic lens for open area or a narrow lens for long pathway
• Manual test switch and LED indicator
• Clear Plastic Lens

ELECTRICAL

• 120/277VAC input, 60Hz
• Operating temperature of 50º F to 104ºF
• Light source: SMD 2W LED, 6000K, 250lms
• Battery: 3.6V 1.5A Ni-MH for high lumen output (2x2W)
• Fully automatic operation w/integral recharging system
• Operating Temp. 50º F to 104ºF

INSTALLATION

• Suitable for ceiling and wall mount

DIMENSIONS (W x D X H)

7-5/16” x 2-3/16” x 4-1/4”

SELF-DIAGNOSTIC FEATURES

• Monitors battery disconnection, charger failure, lamp failure and transformer fault every 5 seconds without discharging battery or illuminating lamps.
• One minute self-test monthly, 30 minute self-test semi-annually, 90 minute self-test annually.
• Uses dual color LED lamp to indicate lamp, battery and charger status.
• Pretested by factory - field adjustment unnecessary.
• 6V Fire alarm function is integrated with Selfdiagnostic function.

FINISH

• White finish

OPTIONS

• REL-200: Wet Location Casing
• Cold weather option: -10ºC (14ºF) to 40ºC (104ºF)

CERTIFICATIONS

• UL, cUL listed
• 5 year limited warranty
