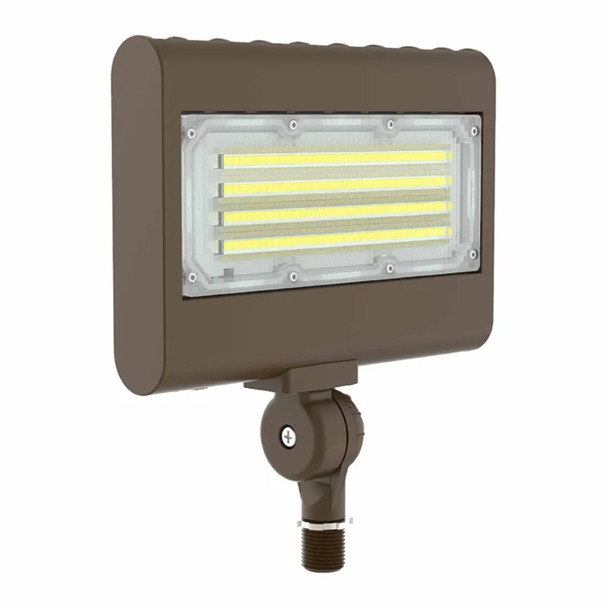

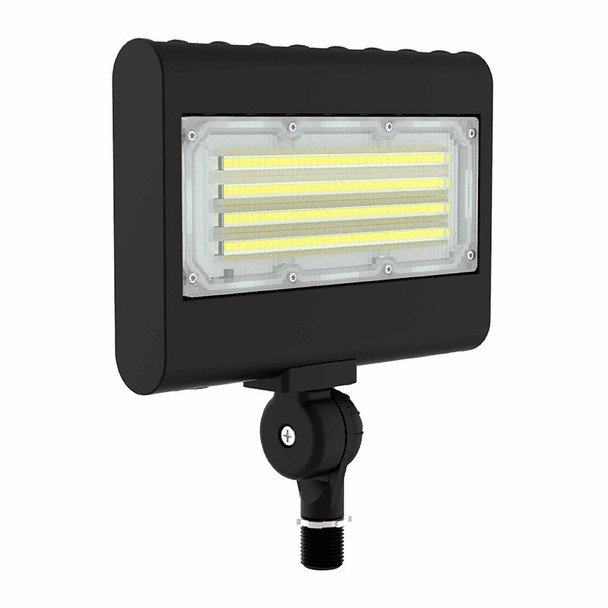

Discover the ultimate solution for all your outdoor lighting needs with our Small Flood Light with Knuckle, SKU: WM-LFX-MD-15-50W-MCTP. This versatile and powerful flood light offers a wattage selection of 15W, 20W, 30W, or 50W, delivering up to 6,350 lumens for optimal illumination. Available in multiple color temperatures ranging from 3000K, 4000K, 5000K, to 5700K, this flood light ensures you get the perfect ambiance for any setting. Rated for up to 70,000 hours of use and backed by a 7-year limited warranty, this fixture is built to last and perform efficiently in various conditions, including wet locations.
Perfect for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, this flood light is an excellent replacement for existing HID flood lights and wall packs.
FEATURES
- DLC Premium & LED High-Lumen Flood lights: High quality and efficient lighting performance.
- Solid State Lighting Technology: Ensures long life with no maintenance needed.
- Extended Lifespan: Rated for 70,000 hours of continuous use.
- Reliable Warranty: Comes with a 7-year limited warranty.
- Optic Lens Type III: Provides a broad and uniform light distribution.
- Multi-CCT Power: Easily adjustable via a switch located at the bottom of the fixture.
ELECTRICAL
- Voltage: 120~277VAC/50~60 Hz
- Wattage Options: 15W, 20W, 30W, 50W
- Power Factor: >0.9
- Efficacy: 130 LPW
MECHANICAL
- Construction: Die-cast aluminum housing with powder coat finish available in dark bronze and white.
- LEDs: Utilizes Philips Lumileds Luxeon 2835 High Flux LEDs.
- Mounting: 90° adjustable 1/2” knuckle mount.
- IP Rating: IP65, suitable for wet locations.
- Operating Temperature: -40°F to 104°F
LIGHTING
- Dimming: 0~10V Dimmable
- Cord: 13” #18 AWG stranded wires
- Color Temperature: 3000K, 4000K, 5000K, 5700K selectable
- Total Lumens: Up to 6,350 lumens
- Color Rendering Index (CRI): ≥ 82
- Beam Angle: 120° X 90°
RESOURCES AND DOWNLOADS
| SKU | WM-LFX-MD-15-50W-MCTP-KN |
|---|---|
| Weight | 20.00 LBS |
| Light Source | LED |
| Fixture Size | 9 3/4" x 9 3/8" x 2" |
| Driver Type | 120-277VAC |
| Lumen Output | 6350 |
| Total Input Watts | 15W |
| Total Input Watts | 20W |
| Total Input Watts | 30W |
| Total Input Watts | 50W |
| Lumen Output | 130/W |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Color Temperature (CCT) | 5700K |
| Voltage | 120-277V |
| Color Rendering Index (CRI) | >70 |
| L70 Expected Life (hours) | 50,000 |
| Listings and Ratings | UL, DLC |
