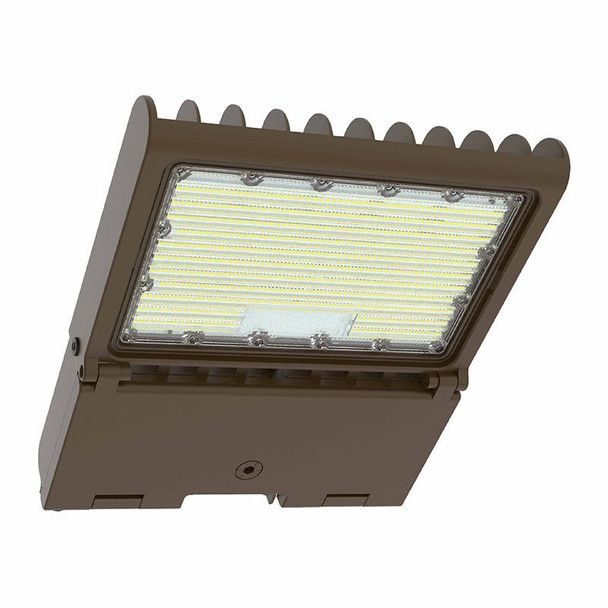

Large Flood/Area Light - 50W/80W/100W/150W

This powerful Large Flood/Area Light offers versatile and reliable performance, delivering a maximum of 19,200 lumens. Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, it caters to diverse lighting needs with CCT adjustable options of 3000K, 4000K, 5000K, and 5700K. Designed to last up to 70,000 hours, this LED flood light features multi-power and multi-CCT capabilities, making it an essential addition to any outdoor lighting setup. It comes with a 7-year limited warranty, ensuring long-term reliability and performance.

Key Features

LED Flood Light
Snap-on and bolt mounting options for easy, one-person installation
Mounting options sold separately
70,000 hours rated life
7-year limited warranty
Optic Lens Type: III
Multi-CCT and Multi-Power with switches located at the bottom of the fixture

Electrical Specifications

Voltage: 100-277V AC, 50/60Hz
Wattage: 50W, 80W, 100W, 150W
Power Factor: >0.9
Output Current: 0.25A
Efficacy: 125 LPW
THD: <20%

Mechanical Properties

Die-cast aluminum housing with a powder coat finish (available in Dark Bronze, White, Black)
10KV lightning surge protection
Operating temperature: -40°F to 104°F
IP Rating: IP65
Suitable for wet locations
Effective projected areas (EPA): Front = 0.38 sq ft, Side = 0.30 sq ft, Face = 1.05 sq ft

Lighting Characteristics

Dimmable: 0~10V
Solid State Lighting technology for long life with no maintenance needed and high efficiency
Optical TYPE III lens, high light transmittance PC, anti-UV and flame resistant
3.2' SJTW 18/3 AWG cable
Maximum total lumens: 19200LM
Color temperature options: 3000K, 4000K, 5000K, 5700K
Color rendering index: CRI ≥ 70
Beam Angle: 90°x120°

Resources and Downloads

Download Large Flood/Area Light Spec Sheet

Westgate Resources and Downloads

Details

BUG Rating:	B4-U0-G1
Beam Angle:	90°\|120°\|90° x 120°
CRI:	70
Color Temperature:	3000K\|4000K\|5000K\|5700K
Compliance & Warranty:	7 Year Warranty\|DLC Premium\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Driver Type:	100-277V
Efficacy:	125LM/W
Finish / Color:	White\|Black\|Bronze
Fixture Size:	14 7/8" x 12 5/8" x 3 3/8"
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	2.625
Item Length (Inch):	14.75
Item Weight (LBS):	8.598
Item Width (Inch):	12.625
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	Optic Lens Type: III
Light Source:	LED
Lumen Output:	19200
Operating Temperature:	-40℉~+104℉
Power Factor:	>0. 9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT
THD:	<20%
Voltage:	120-277V
Wattage:	50W\|80W\|100W\|150W
