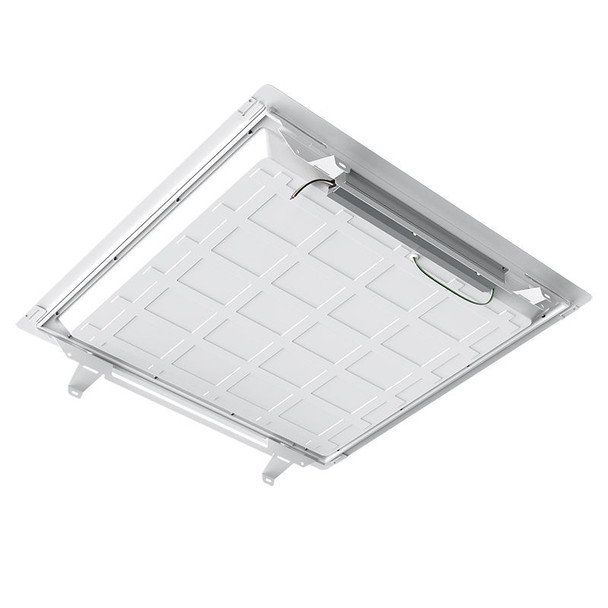

Illuminate Your Space with Westgate’s Premium High-Lumen Retrofit Flat Panel
Transform any area with Westgate’s cutting-edge Premium High-Lumen Retrofit Flat Panel. Specifically engineered to seamlessly replace traditional fluorescent troffers, this LED fixture offers superior brightness and energy efficiency. Ideal for commercial, retail, and educational environments, it delivers advanced LED technology with uniform light distribution for optimal illumination.
Key Features and Benefits
- Selectable color temperatures: 3500K, 4000K, 5000K
- Adjustable wattages: 16W, 20W, 24W
- High efficacy: 125 LPW
- Long lifespan: 50,000 hours
- Dimmable from 0-10V for versatile lighting
- CRI ≥ 80 for accurate color rendering
- Operates in temperatures ranging from -4°F to 113°F
- 5-year warranty for peace of mind
- Easy to install and maintain
- Sleek white finish with durable galvanized steel construction
- Integrated securement tabs for stable attachment to existing troffer housings
Specifications
- Voltage: 120-277VAC 50/60Hz
- Total Lumens: 2000LM/2500LM/3000LM
- Power Factor: >0.9
- LED Type: SMD 2835
- Lens: Durable polycarbonate material
- Dimensions: 22"(L) x 21.4"(W) x 1.48"(D)
- BUG Rating: B1-U3-G1
- Minimum Depth for Installation: 3"
Common Uses
Perfect for illuminating offices, classrooms, and retail spaces, offering superior energy efficiency and brightness.
RESOURCES AND DOWNLOADS
SKU | WM-LRP-HL-2X2-MCTP |
---|---|
Weight | 18.00 LBS |
Total Input Watts | 16W |
Total Input Watts | 20W |
Total Input Watts | 24W |
Lumen Output | 125/W |
Color Temperature (CCT) | 3500K |
Color Temperature (CCT) | 4000K |
Color Temperature (CCT) | 5000K |
Listings and Ratings | UL, DLC |
