8FT TRI-PROOF VAPOR-TIGHT Linkable HIGH-LUM. Select 75/65/55W 30/40/50K 0-10V

By Westgate Manufacturing

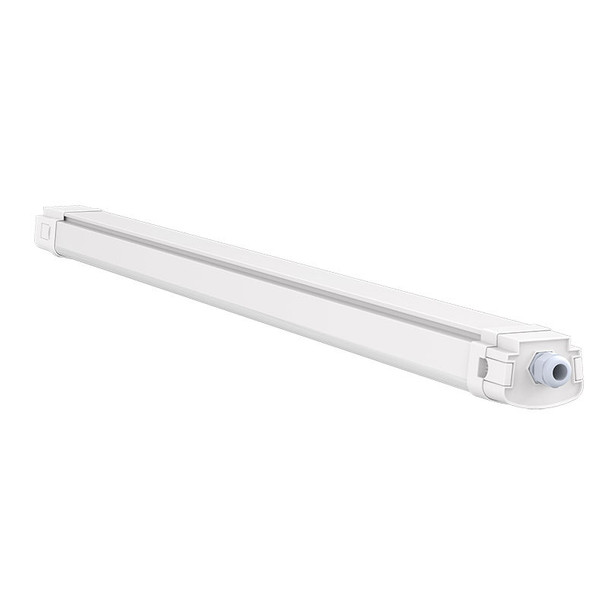

Modular Linear Vapor Tight LED
Modular Linear Vapor Tight LED
Modular Linear Vapor Tight LED
Westgate MFG | Modular Linear Vapor Tight Tri-proof: Water, Dust, & Impact Resistance | LTPV Series
Modular Linear Vapor Tight LED
Modular Linear Vapor Tight LED
Modular Linear Vapor Tight LED

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

8FT TRI-PROOF VAPOR-TIGHT Linkable HIGH-LUM. Select 75/65/55W 30/40/50K 0-10V

$225.55
MSRP: $250.78
You save $ 25.23 (10%)
  • SKU: WM-LTPV-8FT-70W-MCTP-D
  • UPC: 845060096545
  • MPN: LTPV-8FT-70W-MCTP-D

Quick Overview

8FT TRI-PROOF VAPOR-TIGHT Linkable HIGH-LUM. Select 75/65/55W 30/40/50K 0-10V (wattage: 55W/60W/70W; lumens: 9800; efficacy: 140LM/W; CCT: 30K/40K/50K; voltage: 120-277Vac)

IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 93
Free shipping on this item
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

View Details



Choose Options
Total: Inc. Tax
Total: Ex. Tax
Description

8Ft. modular linear vapor tight LED with selectable color temperature (3000K/4000K/5000K) and adjustable wattage (55W/60W/70W). Provides up to 9800 lumens.

Key Features and Benefits

  • Selectable color temperature: 3000K/4000K/5000K
  • Adjustable wattage: 55W/60W/70W
  • High efficacy: 140 LPW
  • Dimmable: 0~10V dimming
  • Vandal-proof polycarbonate lens
  • IP66 rated, suitable for wet locations
  • Tool-free and plug & play sensor modules for easy installation
  • UV-stabilized polycarbonate diffuser eliminates glare
  • Operating temperature: -22°F to 104°F
  • 5-year warranty

Specifications

  • Voltage: 120-277V AC 50/60Hz
  • Wattage: 55W/60W/70W
  • Power Factor: >0.98
  • Lumens: Max. 9800LM
  • Color Rendering Index: CRI ≥ 80
  • Dimensions: 96 1/2” (L) x 3 1/5” (W) x 2 1/2” (H)

Common Uses

Ideal for offices, retail stores, showrooms, residential applications, restaurants, bakeries, food facilities, gyms, pool areas, and any application requiring NSF certified or high-end architectural grade fixtures.

RESOURCES AND DOWNLOADS

8Ft. Modular Linear Vapor Tight LED Spec Sheet
