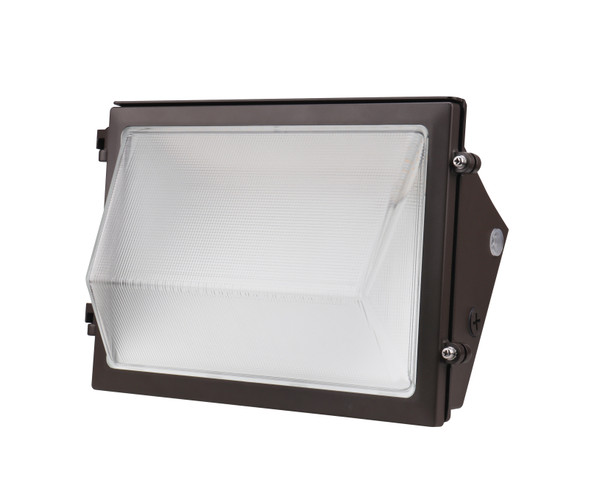

Compact traditional wall pack with selectable color temperature (3000K/4000K/5000K) and adjustable lumen outputs (6075/4725/3375 lm).
Key Features and Benefits
- Traditional style matches the appearance of legacy products while covering the same footprint
- 4 - 1/2” knockouts for versatile mounting
- Wall mount with or without junction box
- Integrated photocell for dusk to dawn operation
- Hinged removable door housing for easier installation
- Glass lens
- PowerSet feature allows for multiple lumen stops out of the box
- FieldCCeT feature provides multiple color temperature settings in one fixture
Specifications
- High efficacy, up to 135 lm/W
- CRI: >80
- Rated Life: >54,000 hours
- Input voltage: 120-277V, 120-347V, 277-480V
- 0-10V dimming, dim-to-off
- Surge protection: 4kV
- Power factor: >0.9
- THD: <20%
- Ambient operating temperature: -40°F to 122°F (-40°C to 50°C), -13°F to 122°F (-25°C to 50°C) with photocell
- Bronze powder coated, die-cast aluminum housing
- Glass lens
- 5-Year limited warranty
Common Uses
Industrial Parks, Loading Docks, Utility Sheds, Entryways, Walkways, Storage Areas, Security, Perimeter Lighting
RESOURCES AND DOWNLOADS
| SKU | E-TWP1-PS45-FCCT-H |
|---|---|
| Weight | 10.00 LBS |
| Lumen Output | 6075/4725/3375 lm |
| Total Input Watts | 45/35/25W |
| Voltage | 120-347V |
| Color Temperature (CCT) | 3000/4000/5000K |
| Color Rendering Index (CRI) | >80 |
