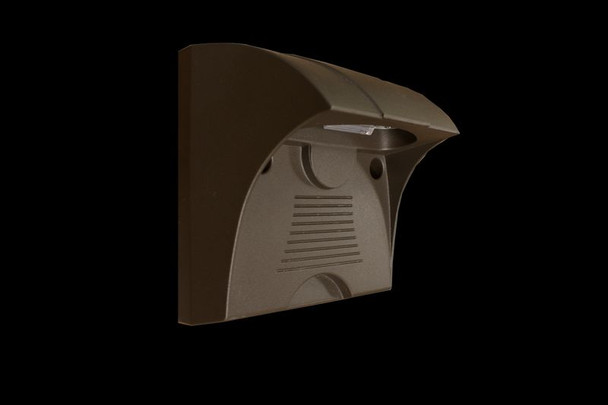

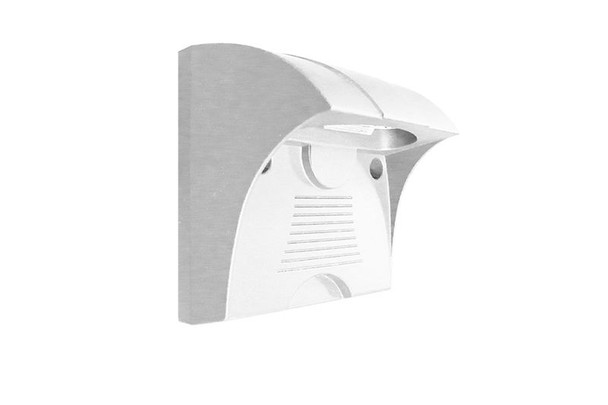

Versatile and Efficient LED Wall/Step Light
Enhance your outdoor lighting with our 6W LED Wall/Step Light, perfect for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Designed to provide bright and efficient illumination, this versatile light is a reliable choice for various applications.
Electrical Specifications
- Voltage: 100~277 VAC, 50/60 Hz
- Wattage: 6 W
- Power Factor: 0.95
- Efficacy: 80 LM/W
Housing Specifications
- Material: Die-cast aluminum with a powder coat finish available in Dark Bronze or White
- Front Housing: Polycarbonate
- Vandal Resistance: Yes
- Hubs: Four 1/2” HUBS
- Operating Temperature: -40°F to 104°F
- Lifespan: 70,000 hours
- IP Rating: IP54
Certifications
UL Certified
Lighting Specifications
- Lens: Prismatic Lens
- LED Chip: Philips Lumileds LEDs
- Total Lumens: 480 LM
- Color Temperature: 5000K/3000K
- Color Rendering Index (CRI): >80
- Beam Angle: 110° x 65°
Warranty
Enjoy peace of mind with our 7-year warranty.
Resources and Downloads
| SKU | WM-WMS-S |
|---|---|
| Weight | 4.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Color Rendering Index (CRI) | > 80 |
| Driver Type | 100~277 VAC |
| Lumen Output | 630 or 660 |
| Luminaire Efficacy Rating (LER) | 80 lm/W |
| L70 Expected Life (hours) | 70,000 hrs |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 6 |
| Total Input Watts | 6W |
| Lumen Output | 630 |
| Voltage | 120VAC |
| Color Rendering Index (CRI) | >80 |
| L70 Expected Life (hours) | 70,000 |
| Listings and Ratings | UL |
| Lumen Output | 660 |
