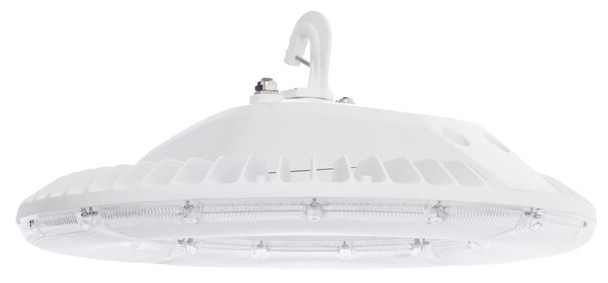

High-Performance LED High Bay Light

Enhance the lighting in your indoor parking lots, commercial buildings, schools, warehouses, retail centers, and apartment complexes with our top-tier Westgate LED Saturn High Bay Lights. Designed to deliver superior lighting performance, these high bay lights are available in multiple wattages to suit your needs.

Electrical Specifications

Voltage: 120~277VAC, 50/60 Hz
Wattage Options: 100W, 150W, 200W, 240W
Power Factor: >0.90
Total Harmonic Distortion (THD): < 20%
Efficacy: 130LM/W

Housing Specifications

Material: Aluminum heat sink, White finish
Durable LED Board: High conductive, waterproof, aging resistant, salt mist resistance, long-life
Cord Type: 6’ SJTW 18/3 AWG cable
Operating Temperature: -4°F to 122°F
IP Rating: IP66, Suitable for Wet Locations

Lighting Specifications

Dimming: 0~10V Dimming
Color Temperature: 5000K/4000K
CRI: >80
Beam Angle: 110º

Warranty Information

We offer a comprehensive 5-year warranty on our Westgate LED Saturn High Bay Lights, ensuring you of their quality and reliability.

Resources and Downloads

Westgate LED Saturn High Bay 100W Spec Sheet Westgate LED Saturn High Bay 150W Spec Sheet Westgate LED Saturn High Bay 200W Spec Sheet Westgate LED Saturn High Bay 240W Spec Sheet

Details

Light Source:	LED
Fixture Size:	Other
Color Rendering Index (CRI):	> 80
Driver Type:	120~277VAC, 50/60 Hz
Lumen Output:	13,000-31,200
Luminaire Efficacy Rating (LER):	130 LM/W
Color Temperature (CCT):	4000K
Color Temperature (CCT):	5000K
Total Input Watts:	100
Total Input Watts:	200
Total Input Watts:	240
Total Input Watts:	150W
Lumen Output:	19500
Voltage:	120-277V
Primary Material:	Aluminum Housing, Outdoor Powder Coating
Finish Options:	White
Dimming Options:	0-10V
Color Rendering Index (CRI):	>80
Power Factor:	>0.9
THD:	<20%
Operating Temperature:	-4°F to 122°F
Beam Angle Options:	110°
L70 Expected Life (hours):	50,000
IP Rating:	IP66
LED Type:	LED
Lens Material:	Polycarbonate Lens
Manufacturer's Warranty:	5 YEARS
Listings and Ratings:	UL
Country of Origin:	China
Item Weight (LBS):	12.9
Item Length (Inch):	14.2
Item Width (Inch):	14.2
Item Height (Inch):	7.4
Total Input Watts:	200W
Lumen Output:	26000
Item Weight (LBS):	13.56
Item Length (Inch):	17.6
Item Width (Inch):	17.6
Item Height (Inch):	7.5
