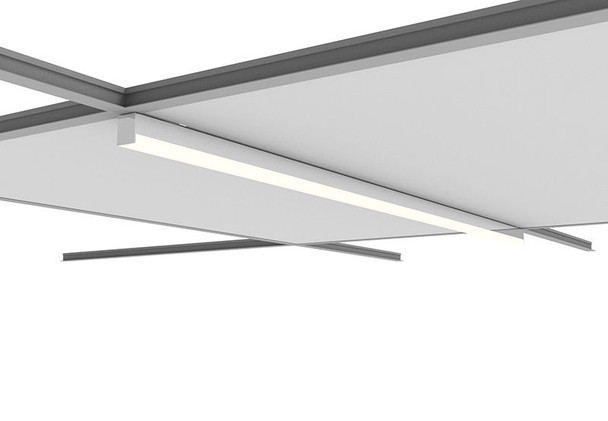

1-Inch Wide Linear Series for Direct T-Grid Mounting

This versatile 1-inch wide linear series light fixture, designed for direct T-grid mounting, operates at an adjustable 40-80 watts and delivers a stunning 4,400-8,800 lumens output. With customizable color temperature settings of 3000K, 3500K, and 4000K, this advanced lighting solution offers up to 50,000 hours of rated life and is backed by a 5-year limited warranty.

FEATURES

• Opal Polycarbonate Lens for Direct Lighting
• Optional Recessed Mounting Kits Available
• Durable Aluminum Housing with Matte White Finish
• MCTP: Multi Color Temperature and Power Selectable Inside Fixture

ELECTRICAL SPECIFICATIONS

• Voltage: 120-277VAC 50/60Hz
• Wattage Options: 40W/60W/80W
• Power Factor: >0.95
• Total Harmonic Distortion: ≤ 20 %
• Efficacy: 110 LM/W

MECHANICAL SPECIFICATIONS

• Low Profile, Modern Design
• Custom Colors Available
• Lens Snaps into Housing
• Mounting Options: Surface, Suspended, Recessed
• IP Rating: IP54
• Each fixture includes a 6-1/2” pre-installed cable with RJ11 connector
• Requires an external driver; make sure to select a driver that matches the total wattage
• Operating Temperature: -13°F~104°F

LIGHTING CHARACTERISTICS

• Dimmable with 0~10V Dimming
• Total Lumens: 4400LM/6600LM/8800LM
• Color Temperatures: 3000K/3500K/4000K
• Multi-CCT and Power Selectable with Switch Inside Fixture
• CRI ≥ 80
• Up Light Option Available
• 50,000 Hours of Rated Life
• 5-Year Warranty
• Beam Angle: 104.8°(H) x 100.5°(V)

APPLICATIONS

• Ideal for storage rooms, offices, conference rooms, retail reception areas, hallways, education facilities, hotels, and restaurants
• Suitable for any indoor application
