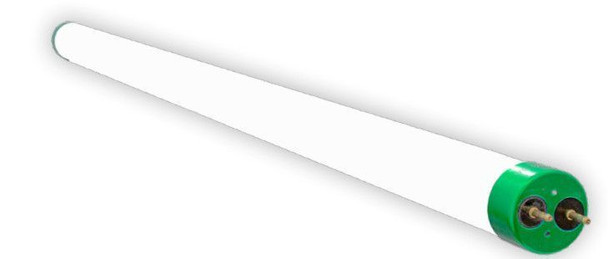

High-Performance LED T8-EZ6 Glass Tube Lamps - 10W, 1,200 Lumens
Upgrade your lighting with our efficient LED T8-EZ6 glass tube lamps. Consuming only 10 watts while providing 1,200 lumens, these lamps are available in frosted or clear lenses and offer a choice of 3000K, 3500K, 4000K, or 5000K color temperatures (CCT). Enjoy the peace of mind provided by our 5-year warranty.
Experience cost-effective lighting by switching from fluorescent tubes to LEDs. The Crystal Glass T8 Tubes deliver the same lumen output with reduced energy consumption. Designed for various retrofit projects, they are available in Type B single end and Type A+B configurations. With a 350° beam angle, our LED tube ensures a soft and bright light distribution, backed by the stable quality from mass automated production.
Features
- Type A + B (Dual UL)
- Type A: With Existing Ballast - UL No. E366061
- Type B: Ballast Override (AC Direct), Connect One End or Both Ends (Dual Function) - UL No. E342884
- 5-Year Warranty
- Glass Lens
Electrical Specifications
- Voltage: 120-277V; 50/60Hz AC
- Power Factor: >0.90
- THD: <20%
- Wattage: 10W
- Efficacy: 120 LPW
Mechanical Specifications
- Base Type: G13
- Glass tube: Superior Transparency and Thermal Conductivity compared to Plastic
- Clear Glass
- Ambient Operating Temperature: -13°F to 113°F
- IP Rating: IP20 (Indoor)
Lighting Characteristics
- Dimming: Non-Dimmable
- Total Lumens: 1200LM
- Color Temperatures: 3000K/3500K/4000K/5000K
- Color Rendering Index: CRI ≥80
- Beam Angle: 120°
- Rated Life: 50,000 hours
Warranty
- 5-Year Warranty
RESOURCES AND DOWNLOADS
SKU | WM-T8-EZ6-GS-2FT-10W |
---|---|
Weight | 3.00 LBS |
Light Source | T8 LED |
Fixture Size | 2' Linear |
Color Rendering Index (CRI) | ≥ 80 |
Driver Type | 120-277V |
L70 Expected Life (hours) | 50,000 hrs. |
Lumen Output | 1,200lm |
Luminaire Efficacy Rating (LER) | 120lm/W |
Color Temperature (CCT) | 3000K |
Color Temperature (CCT) | 3500K |
Color Temperature (CCT) | 4000K |
Color Temperature (CCT) | 5000K |
Total Input Watts | 10 |
Total Input Watts | 10W |
Lumen Output | 1250 |
Voltage | 120-277VAC |
Color Rendering Index (CRI) | >80 |
L70 Expected Life (hours) | 50,000 |
Listings and Ratings | UL, DLC |
Lumen Output | 1200 |
