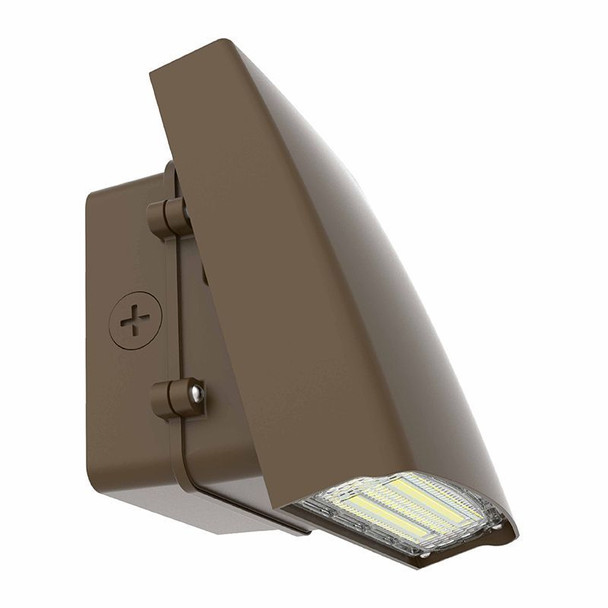

Enhance your outdoor lighting solutions with our Small Cutoff Wall Pack, delivering a powerful 1,500 lumens from just 12 watts. This compact and efficient fixture offers multiple color temperature options: 3000K, 4000K, and 5000K, making it versatile for various applications, including general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Designed for durability and performance, this wall pack is suitable for wet locations and comes with an impressive rated life of up to 70,000 hours, backed by a 7-year limited warranty.
Product Features
- Voltage: 120-277VAC 60Hz
- Energy Efficient: 12W, Power Factor >95, Efficacy 125 LPW
- High Light Transmittance, Anti-UV & Fire Resistant Shatterproof PC Lens
- Operates in temperatures ranging from -4°F to 104°F
- IP65 Rated for wet locations
- Adjustable light head (0° to 90°) for directional lighting
- Full Cutoff & Dark Sky Compliant
- Dimmable (0~10V) for customizable ambiance
- Four 1/2” Knockouts: 1 Top, 1 on Each Side, 1 Back
Mechanical Specifications
- Durable Die-Cast Aluminum with Powder Coat Finish
- Available in Multi-CCT and Power (internal switches)
- LED Type/Brand: SMD 3030 Lumileds
- Beam Angle: 80° x 100°
- Type II distribution for wide walkways, ramps, entrance roadways, and narrow lighting
- Total Lumens: 1500LM
- Color Rendering Index (CRI) ≥ 80
Ideal Applications
- General Site Lighting
- Alleys
- Loading Docks
- Doorways
- Pathways
- Parking Areas
RESOURCES AND DOWNLOADS
| SKU | WM-LWAX-SM-12W |
|---|---|
| Weight | 12.00 LBS |
| Light Source | LED |
| Driver Type | 120~277V |
| Lumen Output | 1,500lm |
| Luminaire Efficacy Rating (LER) | 125 LPW |
| L70 Expected Life (hours) | 70,000hrs |
| Color Temperature (CCT) | 3000K |
| Total Input Watts | 12W |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Lumen Output | 1500 |
| Voltage | 120-277V |
| Color Rendering Index (CRI) | >70 |
| L70 Expected Life (hours) | 50,000 |
| Listings and Ratings | UL, DLC |
