Smooth recessed trims,15 watts, 1,275 lumens, available in 2700K/ 3000K/ 3500K/ 4000K/ 5000K CCT adjustable, oil-rubbed bronze finish, up to 35,000 hours rated life, suitable for damp location, 5 years warranty.
FEATURES

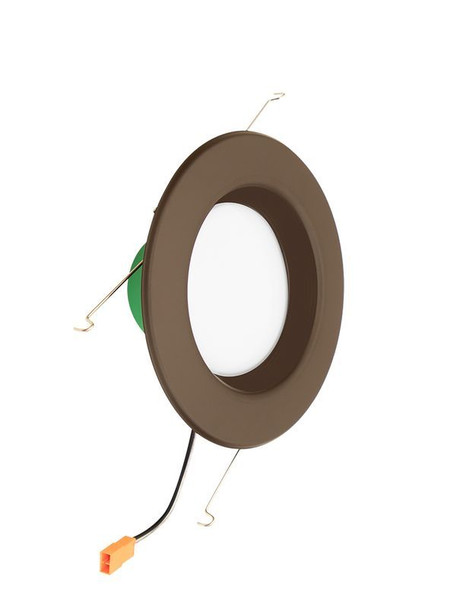

- 6” Smooth Recessed Trim

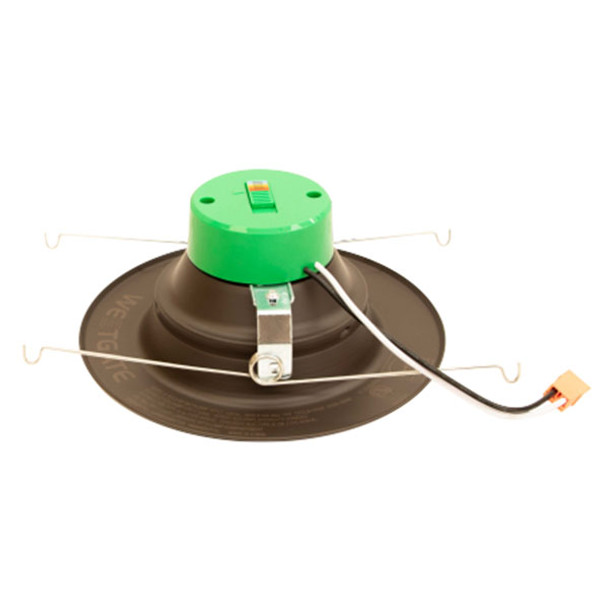

- Multi CCT (Selectable Switch on the Back of the driver )
- Isolated Driver for Improved Thermal Management
- 5-Year Warranty
- Spun Aluminum with White Powder Coat Finish
ELECTRICAL
- Voltage: 120V AC
- Output Voltage: 36VDC
- Power Factor: >0.90
- Wattage: 15W
- Efficacy: 85 LPW
- Total Harmonic Distortion: ≤15 %
MECHANICAL
- Spun Aluminum with White Powder Coat Finish
- Includes 8” Medium Base E-26 Screw-in Adapter That Fits any Standard Incandescent Down-light
- Maximum Ambient Temperature: 104°F
- Fits in Standard 6” Recessed Housings
- Rated life: 50,000 hrs
- Damp Location
LIGHTING
- Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)
- LED: Epistar Chip (COB) and Driver—35,000-hour Design Life
- Can Rotate after Installation to Align
- Optics: White Translucent Acrylic Lens
- Total Lumens: 1275 LM
- Multi Color Temperatures: 2700K/ 3000K/ 3500K/ 4000K/ 5000K
- Multi CCT (Selectable Switch on the Back of the Driver )
- Color Rendering Index: CRI ≥ 90
APPLICATIONS
- LED retrofit trim have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets storage areas, attics, corridors, or general lighting solutions for residential and commercial applications
RESOURCES AND DOWNLOADS
| SKU | WM-RDL6-ST-MCT5-ORB |
|---|---|
| Weight | 10.00 LBS |
| Light Source | LED |
| Fixture Size | 6" |
| Color Rendering Index (CRI) | ≥90 |
| Driver Type | 120V AC |
| Lumen Output | 1,275lm |
| Luminaire Efficacy Rating (LER) | 85lm/W |
| L70 Expected Life (hours) | 35,000hrs |
| Color Temperature (CCT) | MCT |
| Total Input Watts | 15 |
