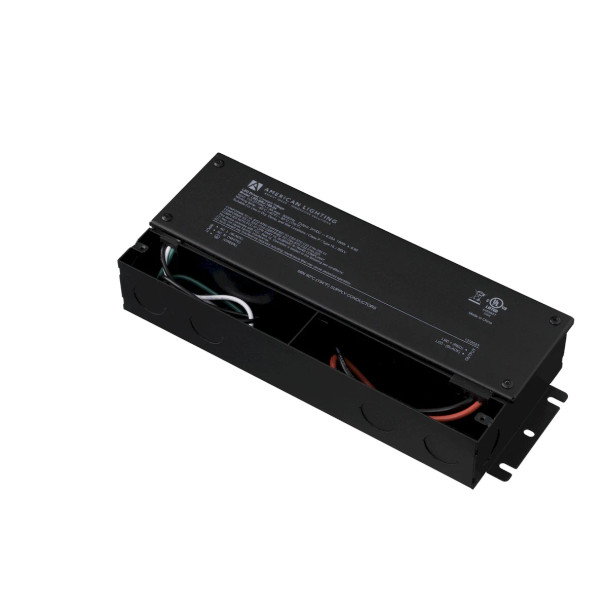

Compact 150W constant voltage driver with 24V DC output, universal 100-277V AC input, non-dimmable. Ideal for wet locations with integrated junction box.

Key Features and Benefits

• 24V DC constant voltage hardwire driver
• Universal 100-277V AC power input
• High reliability with built-in protections
• Short circuit, over-load, and over-temperature protections
• Slim, compact aluminum housing design
• Integrated wiring compartment
• Free air convection cooling
• Class 1, Class P, Type HL, FCC compliant
• cULus Listed, Wet location rated

Specifications

• Input Voltage: 100-277VAC
• Output Voltage: 24VDC
• Rated Current: 6.25A
• Power Factor: 0.95
• Min Load: 15W
• Max Load: 150W
• Efficiency: > 83%
• Dimensions: 10.26" L x 4.17" W x 1.93" H
• Non-Dimming
• Operating Temp: -40°F to 140°F
• cULus Listed for Wet locations

Common Uses

Ideal for use with DMX decoders and controls for secondary side dimming or in non-dimming applications, perfect for wet location installations.
