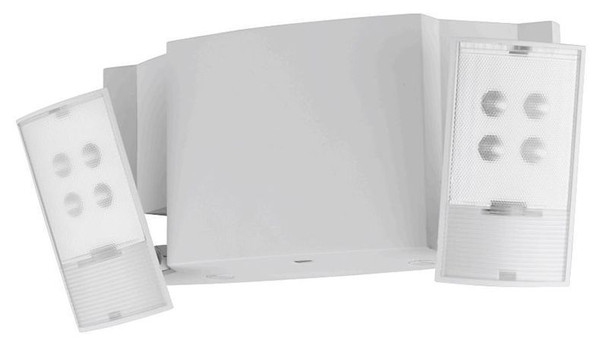

Ensure safety and compliance with the 2-Head LED Emergency Light, designed to provide reliable illumination during power outages. With an impressive output of 4.5 watts per head and a total of 240 lumens, this fixture ensures well-lit pathways and exits. Available in adjustable color temperatures (6000K and 5000K), it fits perfectly into any setting, whether commercial or high-occupancy residential buildings.
Key Features
- Innovative, easy installation in minutes
- Durable injection-molded thermoplastic ABS housing with UL 94V-0 flame rating
- Three-year warranty for peace of mind
Electrical Specifications
- Voltage: 120V-277VAC dual voltage
- Power factor: >0.90
- Wattage: 4.5 watts per head
- Efficacy: 53 lumens per watt
Mechanical Specifications
- Wall mounting with knockouts in the back plate
- Universal J-box mounting pattern
- Maximum 24 hours for full recharge time
- Equipped with a test switch and charge indicator
- Operating temperature range: 32°F to 104°F
- Rated for 90-minute emergency operation
- Sleek white finish
Lighting Specifications
- Two fully adjustable 4.5-watt LED lamp heads
- Improved beam control for increased spacing and illumination
- Total output of 240 lumens
- Adjustable color temperatures: 6000K and 5000K
- Built-in 3.6V, 1000mAh Nickel Cadmium battery for a minimum of 90 minutes of emergency operation
Emergency lighting is essential to ensure safety during power outages. Most modern codes require installation in commercial and high-occupancy residential buildings, making this fixture an indispensable addition to your safety measures.
RESOURCES AND DOWNLOADS
SKU | WM-EL-2A |
---|---|
Weight | 2.00 LBS |
Light Source | LED |
Driver Type | 120-277VAC |
Lumen Output | 240lm |
Luminaire Efficacy Rating (LER) | 53lm/W |
Color Temperature (CCT) | 6000K |
Color Temperature (CCT) | 5000K |
Total Input Watts | 4.5W per head |
Total Input Watts | 1.2W per HEAD |
Voltage | 120-277V |
Color Rendering Index (CRI) | 81.6 |
Listings and Ratings | UL |
