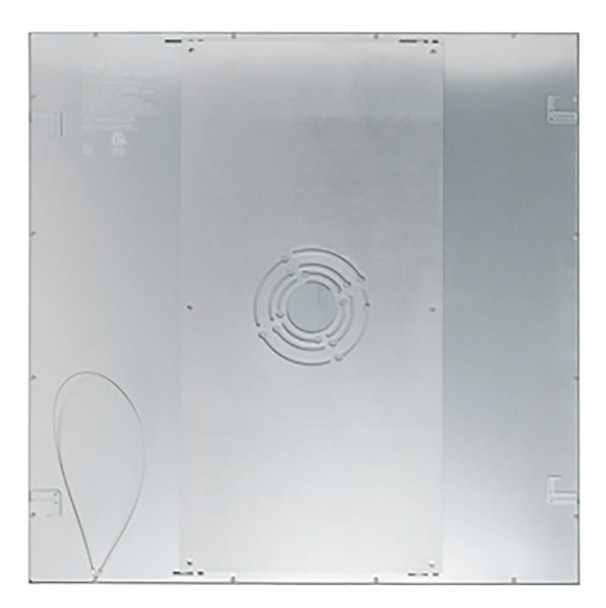

This Surface Mounted LED Panel Light is ideal for Hotels, Offices, Retail Outlets, Restaurants, and Storage. It features a selectable multi-color temperature switch on the back of the fixture and is dimmable with 0-10V dimming.
Key Features and Benefits
- Selectable power settings: 20W, 33W, 40W
- Selectable color temperatures: 3000K, 4000K, 5000K
- High efficacy of 100 LPW
- Long lifespan of 50,000 hours
- White finish with cold-rolled steel construction
- Earthquake hooks built into the housing
- Dimmable with 0-10V dimming
- Operating temperature range: -13°F to 104°F
- Power factor of >0.97 and THD <20%
Specifications
- Voltage: 120-277VAC 50/60Hz
- Total Lumens: 4000LM (40W), 3300LM (33W), 2000LM (20W)
- Color Rendering Index: CRI ≥ 80
- Dimensions: 23 3/4"(W) x 23 3/4"(H) x 1 1/5"(D)
- Lens: Polycarbonate
- BUG Rating: B2-U1-G1
- Warranty: 5 years
Common Uses
Ideal for use in hotels, offices, retail outlets, restaurants, and storage areas.
RESOURCES AND DOWNLOADS
2X2 Power & CCT Adjustable Internal-Driver LED Surface Mount Panel Spec Sheet
| SKU | WM-LPS-2X2-20-40W-MCTP-D |
|---|---|
| Weight | 16.00 LBS |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 20W |
| Total Input Watts | 33W |
| Total Input Watts | 40W |
