The RDL Series 3-inch LED Recessed Trim is a versatile lighting solution that combines efficiency with flexibility. With a power consumption of just 7 watts and a luminous output of 560 lumens, this trim offers excellent illumination with minimal energy use. The color temperature can be adjusted between 2700K, 3000K, 3500K, 4000K, and 5000K, making it suitable for various lighting needs. Designed to last up to 35,000 hours and backed by a 5-year limited warranty, this unit is a reliable investment for both residential and commercial lighting applications.
Ideal for both new and existing residential and commercial constructions, these 3-inch round LED downlights feature a smooth trim that seamlessly integrates with any decor.
FEATURES
- 3-inch Smooth Recessed Trim

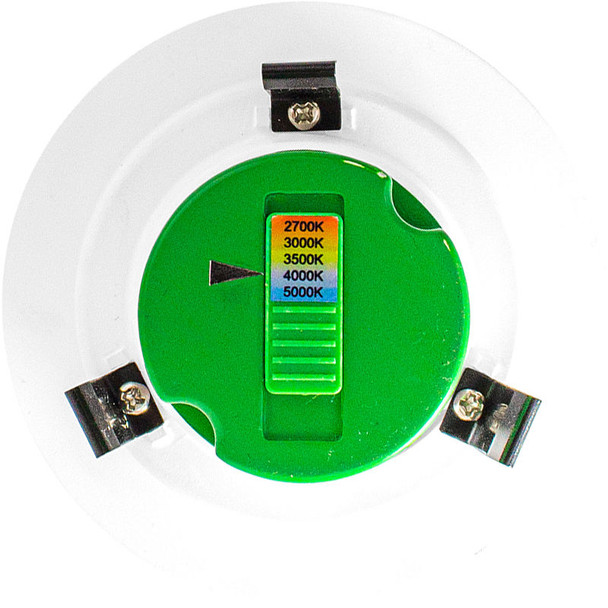

- Multi CCT Adjustable (Selectable on the back of the driver)
- Isolated Driver for improved thermal management
- Durable Spun Aluminum with White Powder Coat Finish
- 5-Year Limited Warranty
ELECTRICAL
- Voltage: 120V AC
- Output Voltage: 36V DC
- Power Factor: >0.90
- Wattage: 7W
- Efficacy: 80 LPW
- Total Harmonic Distortion: ≤ 15%
MECHANICAL
- Spun Aluminum with White Powder Coat Finish
- Includes 8-inch Medium Base E-26 Screw-in Adapter that fits any standard incandescent down-light
- Maximum Ambient Temperature: 104°F
- Fits in Standard 3-inch Recessed Housing
- Rated Life: 50,000 hours
- Suitable for Damp Locations
LIGHTING
- TRIAC Dimming Compatible (using standard TRIAC LED Dimmers)
- High-Quality Epistar Chip (COB) and Driver with a 35,000-hour Design Life
- Can rotate after installation for alignment
- White Translucent Acrylic Lens for optimal light diffusion
- Total Lumens: 560LM Max.
- Color Temperatures Available: 2700K, 3000K, 3500K, 4000K, 5000K
- Multi CCT Adjustable via Switch on the Back of the driver
- Color Rendering Index: CRI ≥ 90
APPLICATIONS
- Designed to be a flexible lighting solution for both retrofit and new construction applications
- Ideal for closets, storage areas, attics, corridors, or general lighting solutions in residential and commercial settings
RESOURCES AND DOWNLOADS
| SKU | WM-RDL3-MCT5-WP |
|---|---|
| Weight | 1.00 LBS |
| Light Source | LED |
| Driver Type | 120V |
| Lumen Output | 560lm |
| Luminaire Efficacy Rating (LER) | 80 LPW |
| L70 Expected Life (hours) | 35,000hrs |
| Color Temperature (CCT) | MCT |
| Total Input Watts | 7W |
| Lumen Output | 560 |
| Color Temperature (CCT) | 2700K |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 3500K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Voltage | 120VAC |
| Color Rendering Index (CRI) | 90 |
| L70 Expected Life (hours) | 35,000 |
| Listings and Ratings | ETL, UL |
