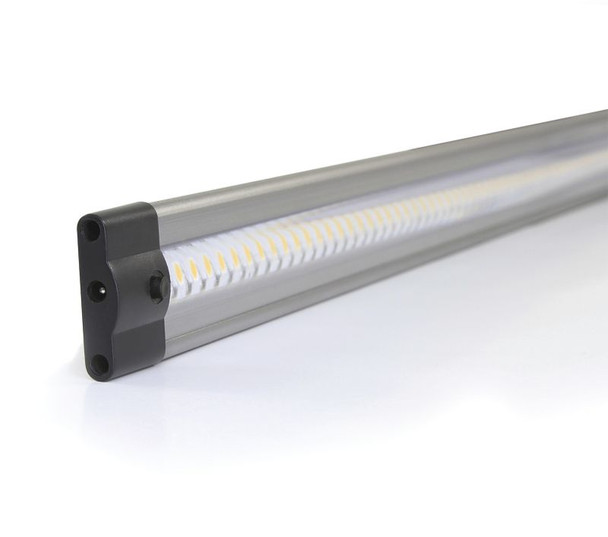

32-Inch LED Undercabinet Light - 24V, 8W, 590-640 Lumens
Illuminate your interior spaces with the 32-inch LED undercabinet light. Designed with high brightness and excellent color rendition, this low-profile lighting solution is both efficient and versatile. It operates at 24 volts DC and consumes only 8 watts, delivering 590-640 lumens of bright, clear light. Available in two color temperatures—3000K (warm white) and 6000K (cool white)—this LED fixture is ideal for various interior applications and comes with a 5-year warranty for peace of mind.
Electrical Specifications
- Utilizes highly efficient SMD 3528 chip technology
- Integral push on/off switch
- Requires 24V DC working voltage (driver needed)
- Compatible with electronic or hardwired magnetic drivers
Mounting Options
- Includes mounting hardware and coupler
- Features polycarbonate end caps with universal feed-thru mono-pin receptacle
Warranty
- Backed by a 5-year warranty
Lighting Specifications
- Color temperatures: 3000K (warm white), 6000K (cool white)
- Suitable for indoor use only
- Ambient temperature rating: -20°C (-4°F) to +40°C (+104°F)
- Maximum run: 48W for 190 inches
- Dimmable with magnetic low voltage transformer
Housing Specifications
- Ultra-low profile design only 1/4” deep
- Constructed from extruded aluminum housing with a white powder coat finish
- Smooth white acrylic lens (0.125” thickness) eliminates lamp imaging
Certifications
- UL-listed for safety and quality assurance
Resources and Downloads
SKU | WM-UC32 |
---|---|
Weight | 22.00 LBS |
Light Source | LED |
Fixture Size | 32" Linear |
Driver Type | 24V DC |
Lumen Output | 590lm-640lm |
Color Temperature (CCT) | 3000K |
Color Temperature (CCT) | 6000K |
Total Input Watts | 8W |
Lumen Output | 590 |
Voltage | 24VDC |
Listings and Ratings | UL |
Lumen Output | 640 |
