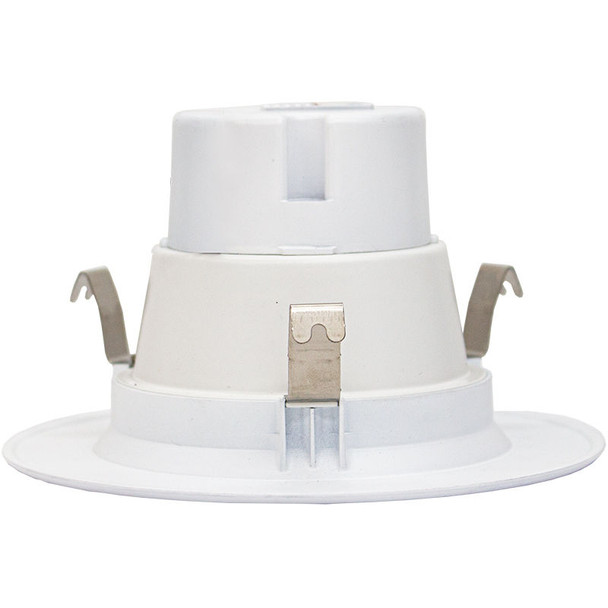

Experience superior lighting with the 4-inch Environmental LED Recessed Light Trim-Composit. This innovative fixture features power selectable options of 8W, 10W, and 13W, delivering up to 1,040 lumens of vibrant light. It offers an adjustable color temperature range from 2700K to 5000K, ensuring the perfect ambiance for any setting. With a rated life of up to 50,000 hours and a 5-year limited warranty, it provides reliable and long-lasting illumination, suited for wet locations.
Designed for both retrofit and new construction applications, this LED retrofit trim is ideal for closets, storage areas, attics, corridors, and general lighting in residential and commercial spaces.
FEATURES
- 4” Smooth Recessed Trim - JA8-E-2019 & Title 24 Compliant, certified by the California Energy Commission (CEC).
- 5-Year Warranty
- Durable Composite Polycarbonate Design
- Multi CCT and Power Selection Switch located on the driver backside.
ELECTRICAL SPECIFICATIONS
- Voltage: 120V AC
- Power Factor: >0.90
- Wattage: 13W/10W/8W
- Efficacy: 80 LPW
- Total Harmonic Distortion: ≤15%
MECHANICAL DETAILS
- Constructed from Composite Polycarbonate with a sleek White Finish
- Maximum Ambient Temperature: 104°F
- Includes an 8" Medium Base E-26 Screw-in Adapter compatible with standard incandescent down-lights
- Fits Standard 4” Recessed Housings
- Features a White Translucent Acrylic Lens
- Suitable for wet locations with pre-installed O-Ring.
LIGHTING SPECIFICATIONS
- Supports TRIAC Dimming using Standard TRIAC LED Dimmers
- Multi CCT and Power Selection Switch on the driver backside
- Total Lumens: 1,040LM Max
- Color Temperatures available: 2700K/3000K/3500K/4000K/5000K
- Color Rendering Index (CRI) ≥ 90
- Rated Life: 50,000 hours
APPLICATIONS
- Perfect for retrofit and new construction lighting solutions in closets, storage areas, attics, corridors, and general residential and commercial use.
RESOURCES AND DOWNLOADS
4-Inch Environmental LED Recessed Light Trim-Composite Spec Sheet
| SKU | WM-RDPS4-MCTP |
|---|---|
| Weight | 1.00 LBS |
| Light Source | LED |
| Color Rendering Index (CRI) | >90 |
| Driver Type | 120V |
| Lumen Output | 1,040lm Max. |
| Luminaire Efficacy Rating (LER) | 80 LPW |
| L70 Expected Life (hours) | 50,000hrs |
| Color Temperature (CCT) | MCT |
| Total Input Watts | 8W/10W/13W |
| Total Input Watts | 8W |
| Total Input Watts | 10W |
| Total Input Watts | 13W |
| Lumen Output | 80/W |
| Color Temperature (CCT) | 2700K |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 3500K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Voltage | 120V |
| Color Rendering Index (CRI) | 90 |
| L70 Expected Life (hours) | 50,000 |
| Listings and Ratings | UL |
