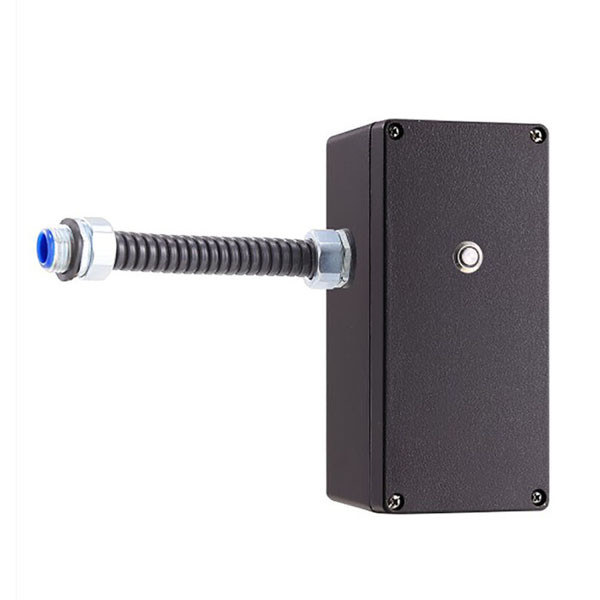

Aluminum die-cast battery backup for outdoor wall packs, 4 watts, 24 hours recharge time, line-neutral 3KV surge protection, bronze aluminum water tight case.
FEATURES
- UL Listed Driver
- Driver Tested UL924 and to CSA C22.2 NO. 141 can be field or factory installation
- Low energy consumption CEC compliance
- Includes water tight LED test switch
- Includes mounting hardware
- Bronze aluminum water tight case
- For use with outdoor wall packs, through its standard knockout
- Lumens calculated by multiplying fixture LPW x 4 watts of input power
SPECIFICATIONS
- Input Line Voltage: 100-277VAC
- Input Line Frequency: 50/60Hz
- Input Current: 100mA
- Input Power Rating: 5W max
- Output Voltage: 50VDC max
- Emergency Power: 4W
- Recharge Time: 24Hrs
- Discharge Time: 1.5H
- Ambient Temp: 5-50°C
- Battery: Li-Ion
- Weight: 2.2LB
- Surge Protection: Line-Neutral 3KV
Note: For use with fixture that employ isolated drivers only
RESOURCES AND DOWNLOADS
| SKU | CTL-BK400OD |
|---|---|
| Weight | 2.20 LBS |
| Driver Type | 100-277VAC |
